    Product Details:

    Place of Origin: China
    Brand Name: Rongsheng
    Certification: CE,ISO
    Model Number: RS-AZS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 tons
    Price: 5000USD-30000USD

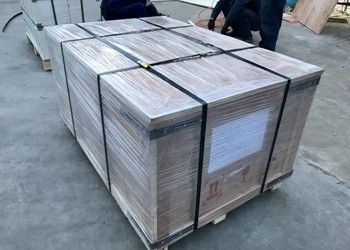

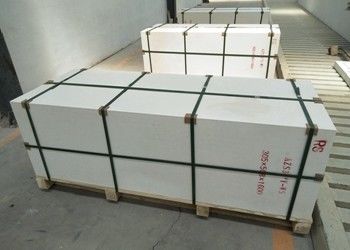

    Packaging Details: Fumigation pallet with cardboard and corner protection,waterproof film
    Delivery Time: 25-40 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 50000 tons per month
    Contact Now
    Detailed Product Description
    Material: Alumina-Zirconia-Silica Size: Standard Size And Customized
    Package: Fumigation Pallet With Cardboard And Corner Protection,waterproof Film Delivery Time: With In 20 Days
    Certification: CE,ISO Transportation: Shipping
    Original Of The Country: Henan,China

    AZS Brick High Grade Fused Cast Refractory Bricks With High Quality And Best Use In Glass Furnace



    AZS Brick Description:



    AZS Brick, also called Fused Cast Alumina-Zirconia-Silica Refractory Brick for sale in Manufacturer RS, belongs to a kind of high-grade fused cast refractory bricks with high quality and best uses in glass furnace. Fused Cast AZS Brick can directly touch with high temperature molten metal and slag.



    AZS Brick, solid with white color, is made of pure alumina powder and zircon sand containing about 65% ZrO2 and 34% SiO2 content that are injected to be mold after being melt in the electric melting furnace. Its petrographic structure is composed of eutectoid and glass phase from corundum and zirconium inclined stone.

    AZS Brick actually is Fused Cast Alumina-Zirconia-Silica Refractory Brick that including three main chemical components of Al2O3, ZrO2 and SiO2. Fused cast AZS Brick is manufactured under the high temperature of 1900~2000 degree through melting and molding





    Properties of AZS Refractory Brick:

    • High Temperature and Erosion Resistance
    • High Compactness Property
    • Good Mechanical Property and Wear Resistance



    Application of Fused Cast AZS Alumina Fire Brick:

    • AZS brick can be used as the materials for resisting molten metal and melt slag.
    • AZS brick is the key materials to be used for the important position in glass furnace.
    • Fused Cast AZS Refractory Bricks also can be used in the metal smelting furnace and container for resisting slag erosion.
    • AZS Brick should not be used in the position with vagaries of temperature among 900~1160 degree.

    Physico-Chemical Performance Index of AZS Brick:



    Items AZS – RS33# AZS – RS36# AZS – RS41#
    Al2O3 ≥ 50 ≥ 49 ≥ 45
    ZrO2 ≥ 32.50 ≥ 35.5 ≥ 40.5
    SiO2 ≤ 15 ≤ 13.5 ≤ 12.5
    Na2O + K2O ≤ 1.30 ≤ 1.35 ≤ 1.3
    Cold Crushing Strength Mpa ≥ 200 ≥ 200 ≥ 200
    Bulk Density g/cm3 ≥ 3.75 ≥ 3.85 ≥ 4
    Apparent Porosity % ≤ 1.2 ≤ 1.0 ≤ 1.2
    Bubble Separation Ratio(1300℃×10h) ≤ 1.2 ≤ 1.0 ≤ 1.0
    Exudation Temperature of Glass Phase ≥ 1400 ≥ 1400 ≥ 1410
    Anti-corrosion Rate of Glass Liquid 1500℃×36h (mm/24h) % ≤ 1.4 ≤ 1.3 ≤ 1.2

    High Grade Fused Cast Kiln Refractory Bricks Customized Size For Glass Furnace



    High Grade Fused Cast Kiln Refractory Bricks Customized Size For Glass Furnace

    High Grade Fused Cast Kiln Refractory Bricks Customized Size For Glass Furnace

    Production Process of AZS Brick for Glass Furnace:

    • Burdening: Mix high purity fused alumina zirconia bricks raw materials with excellent properties after weighting and take good advantage of the properties of all kinds of raw materials.
    • Fusing: Add burdening mixing materials into the self-controlled electric-arc furnace for fusing under the best condition.
    • Pouring: Pouring the fused alumina zirconia molten materials into the special designed products mould.
    • Annealing: Cooling the fused alumina corundum bricks slowly and make the bricks’ crystal grow to be the best structure.
    • Surface working: Use precision processing equipment to manufacture AZS Bricks according with the required precise sizes.
    • Inspection: Inspect the appearance of each brick according to the contract forms strictly.
    • Physical and chemical analysis: Make a physical and chemical analysis on fused alumina zirconia bricks according to the requirements of contract.
    • Preassembling: Preassembling the bricks for key position according to the drawing.
    • Packaging: Package well all the finished bricks.

    Test of Fused Cast AZS Brick:

    • AZS Brick common specifications of refractoriness, reheating linear shrinkage and expansion, refractoriness under load, true density, cold crushing strength, apparent porosity, thermal shock resistance and specific resistance that generally are provided by professional fused cast AZS bricks manufacturer for user department. It is not enough to just learn about the properties of AZS brick, you need to learn more detailed about the reaction situation of glass liquid and furnace gas erosion.
    • Put AZS Bricks into glass furnace and inspect the performance. But there is risk for this test that if the AZS bricks happen to damage and then there will be more loss from operating period and dates. It is necessary to do some test on the application property, such as:
    • Compare the erosion situation and estimate the service life of AZS Bricks.
    • Inspect the effect of fused bricks.
    • Evaluate the quality of fused cast AZS Bricks, and conduct to improve the manufacturing of AZS Bricks.
    • Inspect if the AZS bricks are suitable for the melting and molding in the glass furnace.
