    Product Details:

    Place of Origin: China
    Brand Name: Rongsheng
    Certification: CE,ISO
    Model Number: RS-1031

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 tons
    Price: 500 USD-10,000 USD
    Packaging Details: in Export Standard Wooden Pallet or Wooden Case
    Delivery Time: 3-5 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 5000 tons/month
    Contact Now
    Detailed Product Description
    Material: Alumina Place Of Origin: Henan, China
    Application: Steel Ladle Refractoriness: 1770< Refractoriness< 2000
    Shape: Block MOQ: Negotiable
    Quality: Excellent Type: Refractory Material
    Price: Competitive HS Code: 69022000
    Lead Time: Timely,on Time

    2018 Chinese Factory Top Quality Upper Nozzle Brick For Steel Ladle





    Description:

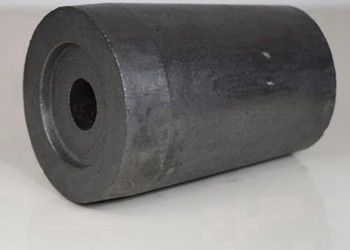

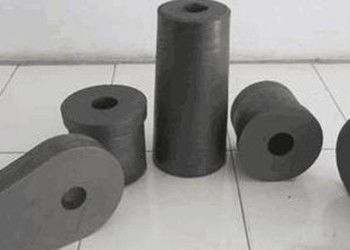

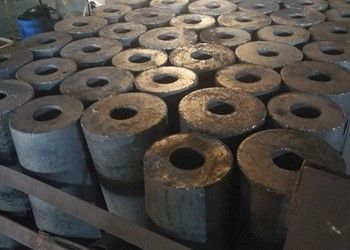

    Upper Nozzle Brick is a refractory steel water flow outlet embedded in the bottom block of shenggang barrel.When not pouring, the nozzle brick and plug brick are in line contact to ensure no steel leakage.The upper part of the brick is an arc shape, which is convenient for opening and closing the nozzle and reducing the resistance of steel water flow. The lower part is a straight section to stabilize the injection flow.



    Application:


    Upper Nozzle is used in the process of steel casting, widely used in large ladle, middle ladle and small ladle.

    Features:



    Excellent thermal shock resistance
    High strength at high temperature,
    Excellent resistance to erosion
    Good resistance to rushing scour.
    Low rough degree after slide surface is used
    Low fissure expansion coefficient



    Physical And Chemical Indicators For High Performance Slide Gate Plate:



    Item RS-SSK-B1 RS-SSK-B2 RS-SSK-B3 RS-SSK-N
    Chemical Composition (%) Al2O3 % 80 75 60 65
    MgO -- -- --
    C ≤6 ≤6 4 4
    Density(g/cm3); ≥ 2.90 2.80 2.60 2.65
    Flexural strength (MPa) ; 15 15 15 15
    compression strength MPa ; 70 60 40 25
