Product Details:
|
Place Of Origin:: | Henan, China | Shape:: | Brick |
---|---|---|---|
Material:: | Alumina Block | SiO2 Content (%):: | - |
Al2O3 Content (%):: | 48%-85% | MgO Content (%):: | 0.8-1.2 |
CaO Content (%):: | 0.34% | SiC Content (%):: | 1.2-1.4 |
CrO Content (%):: | 0.1-0.3% | Model Number: | High Alumina Brick |
Brand Name:: | Rongsheng | Product Name:: | High Alumina Self Flow Castbale Fused Zirconia Alumina Bricks |
Fe2O3:: | ≤2.5% | Dimension:: | ISO Size |
Crushing Strength:: | 40~60 Mpa | Apparent Porosity:: | ≤23% |
Color:: | Light Yellow | ||
High Light: | Heat Proof High Alumina Refractory Bricks,Refractory High Alumina Bricks,Alumina Refractory Bricks For Cement Kilns |

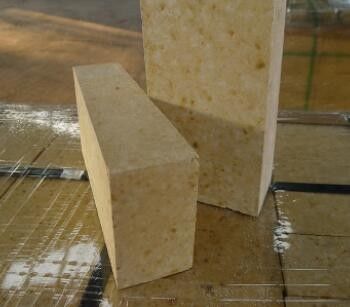

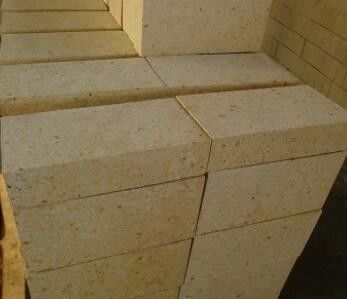

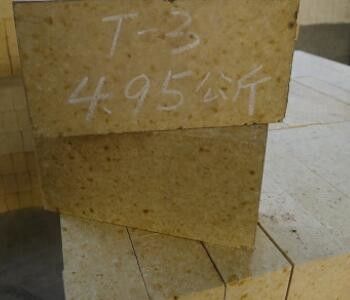

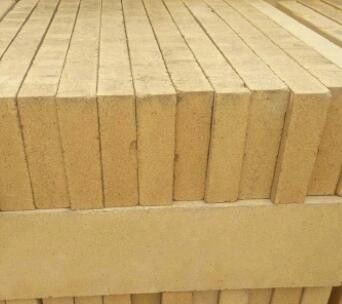

high alumina brick
Feature:
1. bricks are made from high quality bauxite
2. dry pressed
3. burned under tunnel kiln
4. accurate dimension
5. high strength
Product specification:
standard form, normal standard, shaped and special shaped bricks.Can be used in various kilns because of its cheapness and general tray package. Among all of the refractory materials, it is the mostly used in the key positions.Molding method: it has down draft kiln and tunnel kiln and the general sintering temperature is 1360-1480 degrees. It is a kind of aluminosilicate refractory product which aluminum oxide (Al2O3) content is higher than 48%.
Applications:
1. Steel furnaces
2. Iron making furnaces
3. Glass kiln
4. Ceramic tunnel kiln
5. Cement kiln
Specifications:
High aluminum refractory bricks physiochemical index
Item | Properties | |||||
LZ-80 | LZ-75 | LZ-65 | LZ-55 | LZ-48 | ||
Al2O3 ,% | 80 | ≥75 | ≥65 | ≥55 | ≥48 | |
Refractoriness °C | ≥1790 | ≥1790 | ≥1790 | ≥1770 | ≥1750 | |
Bulk density,g/cm3 | 2.65 | 2.5 | 2.45 | 2.4 | 2.3 | |
Softening temperature under load | 1530 | ≥1520 | ≥1500 | ≥1470 | ≥1420 | |
Permanent linear change,% | 1500°CX2H | +0.1 -0.4 |
+0.1 -0.4 |
+0.1 -0.4 |
+0.1 -0.4 |
|
1450°CX2H | +0.1 -0.4 |
|||||
Apparent porosity,% | 22 | ≤23 | ≤23 | ≤22 | ≤22 | |
Cold Crushing strength Mpa | 55 | ≥50 | ≥45 | ≥40 | ≥35 | |
Application | All industrial furnace |
