Product Details:
|
| Mullite Refractory Insulating Refractory Bricks Jm23 Jm26: | Henan, China | Shape:: | Brick |
|---|---|---|---|
| Material: | Fused Mullite Or Sintered Mullite | SiO2 Content (%):: | Max 23% |
| Al2O3 Content (%):: | 45-82% | MgO Content (%):: | Little |
| CaO Content (%):: | 0.34% | Refractoriness (Degree): | 1770°< Refractoriness< 2000° |
| CrO Content (%):: | 0.002% | SiC Content (%):: | 1.2-1.4 |
| Model Number:: | Mullite Brick, JM Mullite Insulating Brick | Brand Name:: | Rongsheng |
| Cold Compressive: | 1.2-2.5 Mpa | Bulk Density:: | 0.55-1.03 G/cm3 |
| Apparent Porosity:: | ≥62% | Fe2O3:: | Max 1.0% |
| Softening Temperature Under Load ≥:: | ≥1420 | Usage:: | Glass Furnace,steel Converter .etc |
| High Light: | Mullite Insulating Bricks JM23,Refractory Mullite Insulating Bricks,Insulating Refractory Brick JM26 |
||
Mullite Refractory Insulating Refractory Bricks Jm23 Jm26
Light Weight Mullite Insulation Brick Applications:
1. Furnaces of metallurgy industry, heat treatment furnace
2. Furnaces of chemical industry and construction industry.
3. Furnace of incineration of garbage, recirculating fluidized bed furnace
Standard sizing: 230 x 114 x 65 mm others up to the client
|
Brand Item |
JM23 | JM26 | JM28 | JM30 | |
| Max Temperature ( C) | 1260 | 1460 | 1540 | 1700 | |
| Bulk Density (g/cm3) | 0.55-0.60 | 0.8 | 0.89 | 1.03 | |
| Cold Crushing Strength (Mpa) | 1.2 | 1.6 | 2.1 | 2.5 | |
| Modulus of Rupture (Mpa) | 0.9 | 1.4 | 1.6 | 2.1 | |
|
Reheating Linear Change (%) CT -30 °CX 8H |
1230 °C -0.5 |
1400 °C -0.5 |
1510 °C -0.5 |
1620 °C -0.9 |
|
|
Thermal Expansion 1100 °C( % ) |
0.5 |
0.7 |
0.8 |
0.8 |
|
| Thermal conductivity (W/m.k ) | 400 °C | 0.14 | 0.27 | 0.32 | 0.41 |
| 600 °C | 0.16 | 0.29 | 0.34 | 0.43 | |
| 800 °C | 0.18 | 0.31 | 0.36 | 0.44 | |
| 1000 °C | 0.20 | 0.33 | 0.38 | 0.45 | |
| Al2O3 % | 37 | 50 | 64 | 72 | |
| Fe2O3 % | 1.0 | 1.0 | 1.0 | 0.5 | |

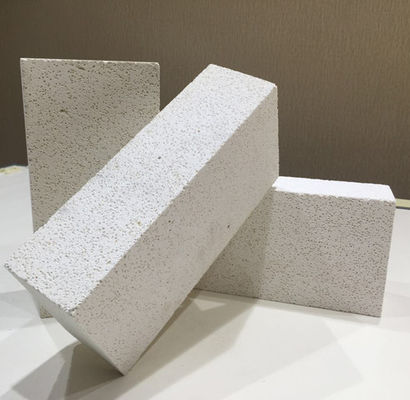

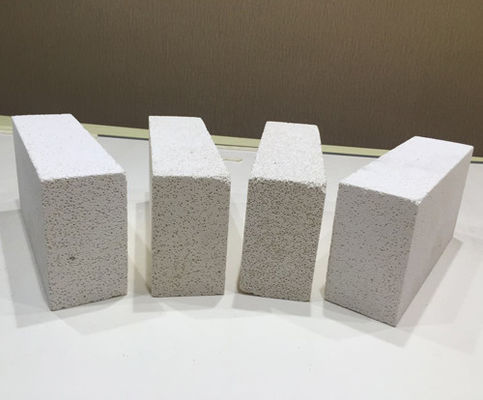

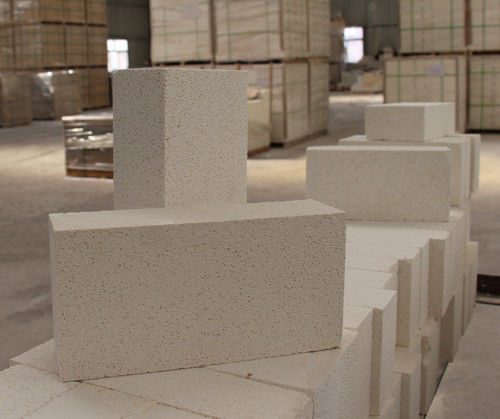

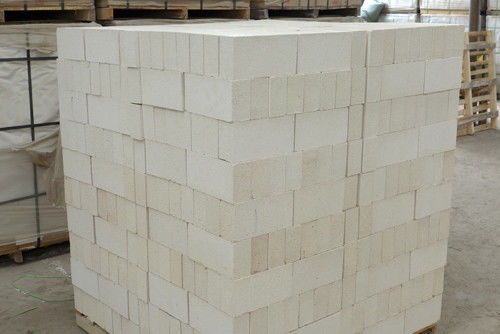

Light Weight Mullite Insulation Brick
The light weight mullite insulation brick is a kind of insulation material adopting organic matter as ignition loss substance in order to increase the porosity of refractory, which has such advantages as high porosity, small volume density, good insulation effect, high mechanical intensity, small thermal conductivity and long service life. For various industrial kilns & furnaces, it is a kind of essential refractory for energy saving and temperature preservation
Light Weight mullite Brick Feature:
1. Low bulk density, low thermal conductivity, good thermal insulation performance.
2. Refractory category allow direct contact of fire, suitable ofr various atmosphere
3. Good integrity with furnace lining, long service life, easy operation, could be shaped freely
4. Product specification: standard form, normal standard, shaped and special shaped bricks.
5. Can be used in various kilns because of its cheapness and general tray package. Among all of the refractory materials, it is the most widely used.
