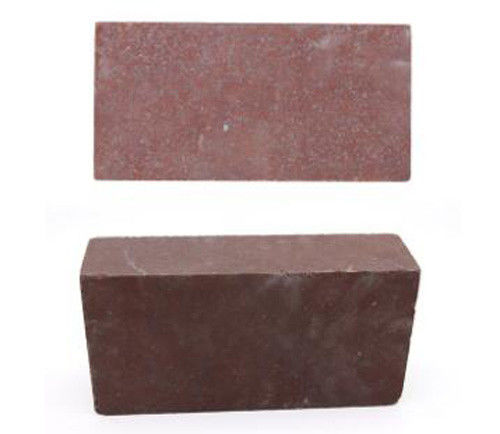

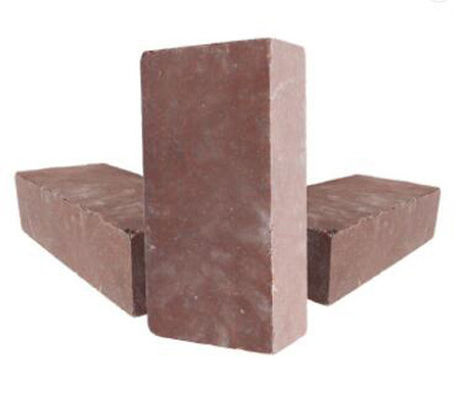

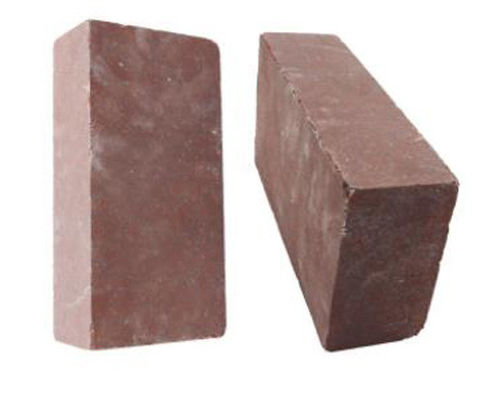

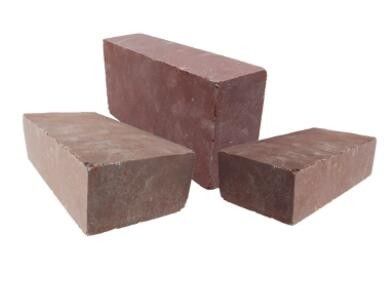

Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks

Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks
Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks

Large Image :  Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks

Product Details:
Place of Origin: Henan China
Brand Name: Rongsheng
Certification: ISO9001
Model Number: Refractory Brick
Payment & Shipping Terms:
Minimum Order Quantity: 1 TON
Price: $300.00 - $1,000.00/ Ton

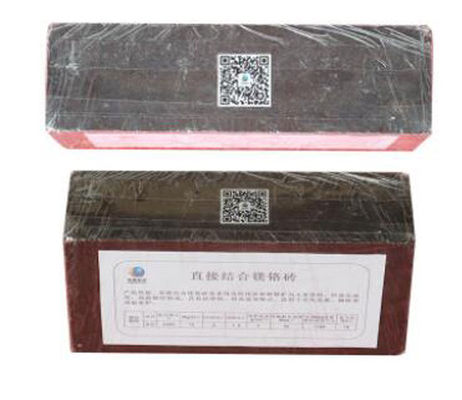

Packaging Details: 1.On wooden pallets with plastic cover 2.According to customer's demands
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000 Ton/Tons per Month

Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks

Description
Lace Of Origin:: Henan, China Shape:: Brick
Material:: Magnesium Oxide (MgO) And Chromium Oxide (Cr2O3) SiO2 Content (%):: 4.5-6.5%
Al2O3 Content (%):: 3.8-4.2% MgO Content (%):: 65-80%
CaO Content (%):: 0.2-0.4% Refractoriness: Common (1580°< Refractoriness< 1770°), 1770°< Refractori
CrO Content (%):: 7-17% SiC Content (%):: Little
Model Number:: Brick, Magnesite Chrome Brick Brand Name:: Rongsheng
Fe2O3:: 4-6.5%
High Light:

65 MgO Magnesite Chrome Bricks

,

Low Thermal Conductivity Magnesite Chrome Bricks

,

Chrome Magnesite Refractory Bricks

65%mgo magnesite chrome bricks refractory list of brick manufacturers



Product information

Magnesite chrome brick to magnesium oxide (MgO) and chromium oxide (Cr2O3) as the main ingredient,periclase and spinel as main mineral components of refractory products.

1. Common Magnesite chrome brick is made by sintered magnesia and refractory level chrome ore as raw materials. The space between refractory grains is bonded with silicate.

2. Direct-bonded Magnesite chrome brick is made by chrome ore with low content of impurities and pure magnesite,firing at the temperature above 1700°C.

3. Semi-rebonded and Fuse-rebonded magnesite chrome brick are made by fused magnesite chrome sinter.

Low Thermal Conductivity Refractory 65 MgO Magnesite Chrome Bricks 0

Features

1. Low bulk density, low thermal conductivity, good thermal insulation performance.

2. Refractory category allow direct contact of fire, suitable ofr various atmosphere

3. Good integrity with furnace lining, long service life, easy operation, could be shaped freely

4. Product specification: standard form, normal standard, shaped and special shaped bricks.

5. Can be used in various kilns because of its cheapness and general tray package. Among all of the refractory materials, it is the most widely used.

Applications

1. Furnaces of metallurgy industry, heat treatment furnace

2. Furnaces of chemical industry and construction industry.

3. Furnace of incineration of garbage, recirculating fluidized bed furnace

Size

Standard sizing: 230 x 114 x 65 mm others up to the client

Special size and OEM Service also provide!

Physical and chemical indexes

Common magnesite chrome brick

Item MGe6 MGe8 MGe12 MGe16
MgO % 80 72 70 65
Cr2O3 % 7 10 13 17
CaO % 1.2 1.2 1.2 1.2
SiO2 % 3.4 4 4 4.2
Al2O3 % 4.5 6.5 6 6
Fe2O3 % 4 4.8 5.5 6.5
Apparent Porosity % 17 18 18 18
Bulk Density g/cm3 3 3 3.02 3.05
Cold Crushing Strength Mpa 55 55 55 50
Refractoriness Under Load °C 1600 1600 1600 1600

Direct-Bonded magnesite chrome brick

Item DMGe4 DMGe8 DMGe12 DMGe16
MgO % 85 77 74 69
Cr2O3 % 5.5 9.1 14 18
CaO % 1.1 1.4 1.2 1.2
SiO2 % 1.3 1.2 1.2 1.5
Al2O3 % 3.5 4 3.5 4.5
Fe2O3 % 3 6.4 5 5.7
Apparent Porosity % 18 18 18 18
Bulk Density g/cm3 3.02 3.04 3.06 3.08
Cold Crushing Strength Mpa 50 50 55 55
Refractoriness Under Load °C 1700 1700 1700 1700
Thermal expansion %(at 1000°C) 1 1 1 0.9
Thermal expansion %(at 1600°C) 1.8 1.8 1.8 1.6
