Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting

Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting
Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting

Large Image :  Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting

Product Details:
Place of Origin: Henan, China
Brand Name: RONGSHENG
Certification: ISO9001
Contact Now

Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting

Description
Processing Service: Cutting, Punching, Moulding Product Name: Ceramic Foam Filter For Casting
Shape: Customized Color: Yellow/white/black And Gray
Package: Carton Or Wooden Case With Pallets Inside
High Light:

Casting Zirconium Silicate Ceramics

,

Porous Zirconium Silicate Ceramics

,

Zr Porous Ceramic Foam Filter

Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting
Product Description

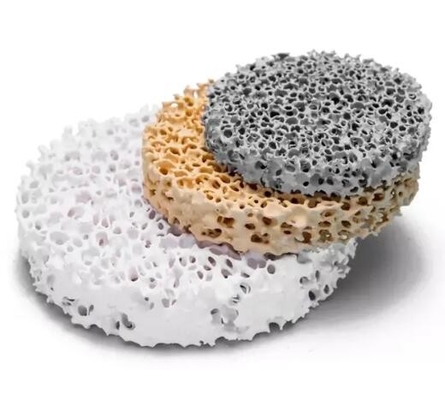

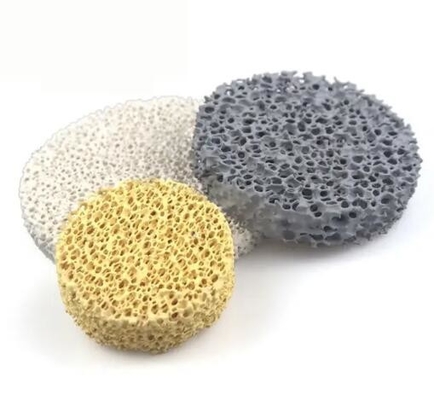

Alumina , Zirconia , Silicon Carbide Ceramic Foam Filter
Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting 0

Ceramic Foam Filter :

We have three kinds of Ceramic Foam Filter: Silicon Carbide Ceramic Foam Filter,Alumina Ceramic Foam Filter,Zirconia Ceramic Foam Filter.

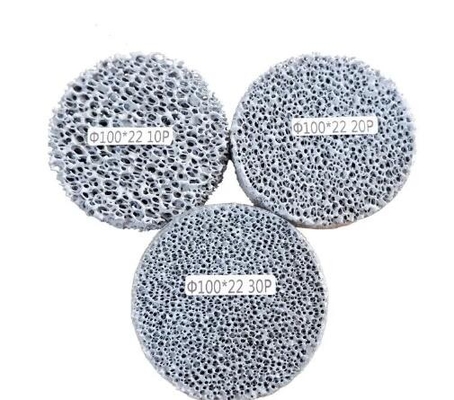

1.Silicon Carbide Ceramic Foam Filter

Silicon carbide foam ceramic filter using German imported polyurethane foam sponge as a carrier, silicon carbide mainly squeezed into the foam sponge, and then squeeze out the slurry,the slurry around the foam fiber, after drying, baking at high temperature, polyurethane thermal decomposition, leaving foam ceramic products, namely silicon carbide foam ceramic filter. The silicon carbide foam ceramic filter, with the three- dimensional mesh interconnection structure of foam sponge, can make metal liquid reflect rectification, mechanical screening, filtration cake, adsorption and other filtration mechanisms to effectively improve the purity of metal liquid, reduce waste rate, reduce mechanical processing loss, thus improve production efficiency and reduce production cost. Silicon carbide foam ceramic filter has high strength, good thermal stability, larger than surface area and high size accuracy. It is mainly used to filter and purify the filtration of ductile cast iron, ash cast iron,aluminum, copper and other alloy metal liquid, effectively remove large inclusions in metal liquid, adsorb smell magazines, reduce the content of gas and harmful elements in metal liquid, improve the metal matrix organization, and improve the mechanical properties of castings.
Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting 1
Silicon Carbide Alumina Zirconia Zr Ceramic Foam Filters Porous Ceramic Foam Filter For Casting 2
1.Technique Data of Silicon Carbide Ceramic Foam Filter:
Composition of product
Silicon Carbide,AL2O3,SiO ect
Color
Grey,Dark Grey
Using Temperature
≤1550ºC
Number of hole density PP(holes per square inch)
10,15,20,30
Porosity
85%-90%
CMOR Mpa
≥1.5Mpa(Industry Standard 1.0Mpa)
Bulk Density
0.4g/cm3~0.5g/cm3
Square specification(mm)
Max filtering capacity(kg)
Normal metal fluid flow velocity(kg/s)
Round Specification(mm)
Max filtering capacity(kg)
Normal metal fluid flow velocity(kg/s)

Ductile cast iron
Ash cast iron/copper-aluminum castings
Ductile cast iron
Ash cast iron/copper-aluminum castings

Ductile cast iron
Ash cast iron/copper-aluminum castings
Ductile cast iron
Ash cast iron/
copper-aluminum castings
40*40*22
32
64
3
4
Φ40*22
25
50
2
3.5
50*50*22
50
100
4
6
Φ50*22
35
70
3
4.5
60*60*22
72
144
5
8
Φ60*22
50
100
4.2
6.5
75*50*22
75
150
6
9
Φ70*22
75
150
5.5
8.8
100*50*22
100
200
8
12
Φ80*22
100
200
7.2
11
75*75*22
110
220
9
14
Φ90*22
120
240
9
14
80*80*22
150
300
12
18
Φ100*22
140
280
11
17
100*100*22
200
400
16
24
Φ110*22
190
380
13
20
150*100*22
300
600
24
36
Φ120*22
230
460
16
25
150*150*22
450
900
36
54
Φ150*22
350
700
25
30

2.Alumina Ceramic Foam Filter

Alumina ceramic foam filter is a new type of low density, high porosity and with three dimensional network skeleton structure of the filter. And widely used in aluminum process industry for molten aluminum filtering, so as to improve aluminum quality. Alumina ceramic foam filter can effectively removes non-metal solid mixture from aluminium and aluminium alloy fusant, reduce trapped gas and provide laminar flow and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, to improve the quality of aluminum alloy and other non-ferrous alloy casting, all of which contribute to reduce casting cost, its maximum service temperature 1200° C. Alumina ceramic foam filter has the advantages of high porosity, high mechanical strength, stable chemical property, strong corrosion-resistant, high adsorption rate, excellent filtering functions and thermal shock resistance. It is mainly used for purification process of aluminum, aluminum alloy, and other nonferrous alloy production, can also be used as gas-solid, liquid-solid separation medium, catalyst carrier, burner and sound-absorbing and environmental protection fields.
