    Product Details:

    Place of Origin: China
    Brand Name: Zhengzhou Rongsheng
    Certification: CE, ISO9001,
    Model Number: RS-XBG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 1-100/ piece
    Packaging Details: Fumigation Pallet in size 920*920*1030mm with cardboard and corner protection,waterproof film
    Delivery Time: 20 days after payment
    Payment Terms: L/C, T/T
    Supply Ability: 1000 ton per month
    Contact Now
    Detailed Product Description
    SiO2: 95% Al2O3: 1.0%
    Apparent Porosity: 24% True Density: 2.35g/cm3
    Cold Crushing Strength: 50 MPa Name: Acid Resistant Bricks

    Insulating Silica Fire Brick For Glass Kiln , Acid Resistance Refractory Fire Bricks



    Description:



    Silica brick is SiO2 content of not less than 96% of the silica as raw materials, adding mineralants (such as scales, lime milk) and binding agent (such as sulfite pulp waste) by mixing, molding, drying, firing and other processes be made of. The higher the SiO2 content in the silica raw material, the higher the refractoriness. Impurity components K2O, Na2O, etc. are harmful, will seriously reduce the refractory products refractory. Fe2O3, CaO, MgO and other impurities from the role of flux. Advanced silicon brick raw materials subject to special treatment, remove impurities.



    Features:



    1.Good acid and erosion resistance, powerful anti high-temperature strength.

    2.Soften melting temperature is 1620~1670 °C.

    3.Low Thermal shock resistance.

    4.Natural silica as raw material, plus regular mineralizer.

    5.Ensure good bonding and structural strength of furnace.

    6.Good heat resistance and long service life



    Application:



    1.Glass melting furnace, ceramic frit kiln, sodium silicate furnace, soaking furnace, ceramic kiln, etc

    2.Coke oven’s coking chamber, combustion chamber walls, steel open-hearth ‘s regenerator and sediment chamber, etc.

    3.Load-bearing parts of high temperature hot air furnace and acid open-hearth furnace roof, etc.



    Specification of Silica Brick:



    Item: Stella HD Stella HD
    SiO2: % ≥94 ≥95
    A12O3: % ≤0.85 ≤1.0
    Apparent Porosity: % ≤22 ≤24
    True Density: g/cm3 2.34 2.35
    Cold Crushing Strength: MPa ≥60 ≥40
    Refractoriness Under Load (0.2MPa): ℃ ≥1660 ≥1660
    Residual Quartz: % ≤1.0 ≤1.0
    Creep Rate 0.2MPa ((1550℃*50h): % ≤0.8 ≤0.8
    Reheat Linear Change ( 1450℃*2h):% ≤0.2 ≤0.2
    Heat Expansion Coefficient (1000℃) % ≤1.26 ≤1.26

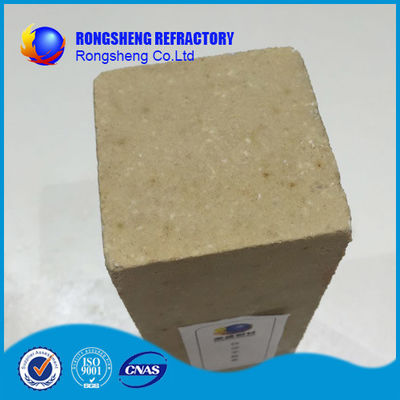

    Product Pictures:



    Insulating Silica Fire Brick For Glass Kiln , Acid Resistance Refractory Fire Bricks

    Insulating Silica Fire Brick For Glass Kiln , Acid Resistance Refractory Fire Bricks

    Insulating Silica Fire Brick For Glass Kiln , Acid Resistance Refractory Fire Bricks
