Product Details:
|
| Product Name: | High Purity Corundum Bricks Alumina 99% | Material: | Corundum |
|---|---|---|---|
| Color: | Pure White | Size: | 230*114*65mm |
| Origin: | Xinmi City | Certificate: | ISO9001 CE SGS |
| Application: | KIln And Furnace | ||
| High Light: | insulating firebrick,high temp brick |
||

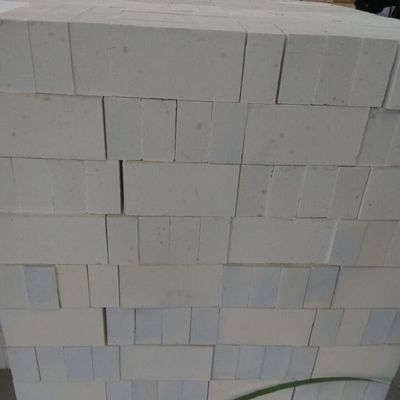

High Grade High Purity Corundum Bricks for Industry Furnace and Kilns
Features For Corundum Brick:
1. Raw material is corundum and baddeleyite eutecticum,high compression strength
2.Top high-temperature capablility.
3.Excellent thermal stability.
4.Low thermal conductivity
5.Powerful penetrating-proof capability.
6.Good erosion-resistance.
7.Strong resistant erosion stability to the glass liquid.
Process For Corundum Brick :
Made of the zirconite (Industry zirconia ) and industry alumina as the mainly mixed raw material, melting in the electric furnace, casting, annealing, machining, then finished.
Physical and Chemical Indicators For Corundum Brick :
| chemical composition | AZS-33 | AZS-36 | AZS-41 |
| ZrO2 | ≥33 | ≥35 | ≥40 |
| SiO2 | ≤16.0 | ≤14 | ≤13.0 |
| Al2O3 | a little | a little | a little |
| Na2O | ≤1.5 | ≤1.6 | ≤1.3 |
| Fe2O3+TiO2 | ≤0.3 | ≤0.3 | ≤0.3 |
Physical Properties
| bulk density(g/cm3): | 3.5-3.6 | 3.75 | 3.90 | |
| cold crushing Mpa | 350 | 350 | 350 | |
| thermal expansion coefficient (1000°C) | 0.80 | 0.80 | 0.80 | |
| exudation temp. of glass phase | 1400 | 1400 | 1400 | |
| corrocion resistance of glass melt(mm/24h) | 1.6 | 1.5 | 1.3 | |
| Density | PT QX | 3.40 | 3.45 | 3.55 |
| WS ZWS | 3.60 | 3.70 | 3.8 | |
phase composition(%)
|
baddeleyite
|
32 | 35 | 40 |
|
glass phase
|
21 | 18 | 17 |
|
α- corundum
|
47 | 47 | 43 |
