Product Details:
|
Material: | Corundum And Baddeleyite | Color: | White |
---|---|---|---|
Alumina: | 45% | Application: | Throat, Dam,BuddlingBricks,Doghouse,Conner |
Size: | Customer Requirement | ||
Highlight: | insulating firebrick,high temp brick |

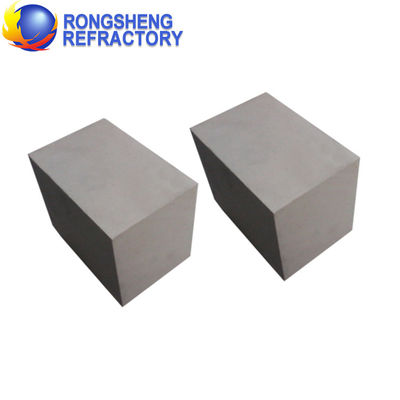

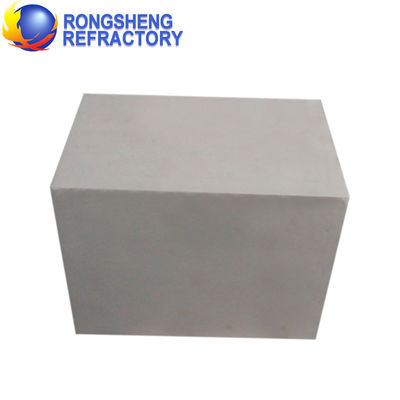

Specification of Fused Cast AZS-41
1. Al203 | 45% |
2. ZrO2 | 41% |
3 .SiO2 | 12.5% |
4. Na20 | 1.25% |
5. Corundum | 43% |
6. Baddeleyite | 40% |
7. Vitreous Phase | 17% |
Bulk Density | 3.9g/cm3 |
Apparent Porosity | ≤1.0% |
Cold Crushing Strength | 350Mpa |
Linear Change Under load | <1 |
RefractorinessUnderLoadof0.2Mpa | 1700℃ |
Exudation Temp | 1400℃ |
Static corrosion of molent glass | 1.2mm/24h |
Blsliter rate | 1.0% |
Features:
AZS-41:It has the most baddeleyite crystals among fused cast AZS series with very good corrosion resistance to molten glass ,So it is used for all demanding glass contact applications, such as electrode blocks ,dam walls, throats,corners and melting end side walls
Typical Applications
Throat
Dam
Bubbling brick
Conner
All electric melting furnaces
