Product Details:
|
High Light: | replacement fire bricks,kiln fire brick |
---|

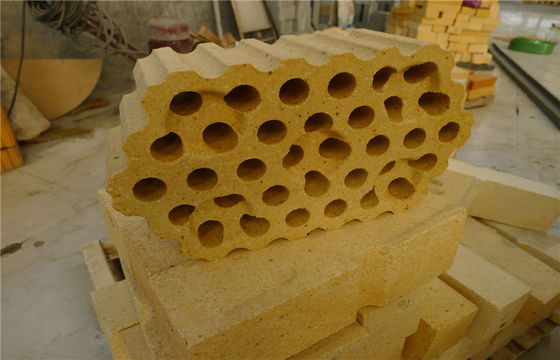

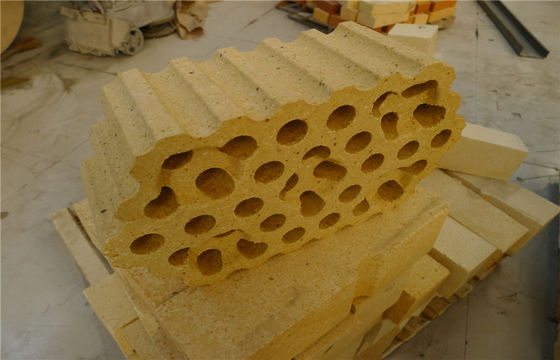

High Alumina Silicate Refractory Fire Checker Bricks / Tiles For Hot Blast Furnace
Description:
high alumina brick
Feature:
Product specification:
standard form, normal standard, shaped and special shaped bricks.Can be used in various kilns because of its cheapness and general tray package. Among all of the refractory materials, it is the mostly used in the key positions.Molding method: it has down draft kiln and tunnel kiln and the general sintering temperature is 1360-1480 degrees. It is a kind of aluminosilicate refractory product which aluminum oxide (Al2O3) content is higher than 48%.
Applications:
1. Steel furnaces
2. Iron making furnaces
3. Glass kiln
4. Ceramic tunnel kiln
5. Cement kiln
Specifications:
High aluminum refractory bricks physiochemical index
Items |
DRL-135 |
DRL-145 |
DRL-150 |
DRL-165 |
DRL-155 |
DRL-48 |
Al2O3, % ≥ |
70 |
75 |
80 |
65 |
55 |
48 |
refractoriness °C ≥ |
1790 |
1790 |
1790 |
1790 |
1770 |
1750 |
AP, % ≤ |
20 |
20 |
19 |
24 |
24 |
24 |
CCS ,MPa ≥ |
65 |
70 |
80 |
49 |
44.1 |
39.2 |
PLC, % ≥ |
±0.1 |
±0.1 |
±0.1 |
+0.1~-0.4 |
+0.1~-0.4 |
+0.1~-0.4 |
1450°Cx2h |
1500°Cx2h |
1450°Cx2h |
||||
0.2MPa RUL, °C ≥ |
1500 |
1550 |
1650 |
1500 |
1470 |
1420 |
Creep rate ar room temperature, % ≤ |
0.6 1350°C×50h |
0.6 |
0.7 |
- |
- |
- |
1450°C×50h |
1500°C×50h |
- |
- |
- |
