Dia 75mm-700mm Carbon Electrode Block Graphite Electrode Uhp For Arc Furnaces

Large Image : Dia 75mm-700mm Carbon Electrode Block Graphite Electrode Uhp For Arc Furnaces

Product Details:

Place of Origin:	Henan, China
Brand Name:	RONGSHENG
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Ton

Contact Now

Dia 75mm-700mm Carbon Electrode Block Graphite Electrode Uhp For Arc Furnaces

Description

Young'S Modulus:	9-14 GPa	Length:	1000mm-2700mm
Diamond:	70-550mm	Commodity:	Graphite Electrode
Refractoriness:	1770℃< Refractoriness< 2000℃	Bulk Density:	1.58-1.85 G/cm3
Apparent Porosity:	20	Hs Code:	69022000
Efractoriness:	1450	Type:	Refractory Material
Flexural Strength:	8-15 MPa	Application:	Arc Furnace Of Steel-making
Nipple Length:	150-400mm	Nipple:	Taper I Inch 4 Cross
Nipple Diameter:	75mm-200mm
Highlight:	Arc Furnaces Graphite Electrode , UhP Graphite Electrode , Dia 75mm-700mm Graphite Electrode

Products Description

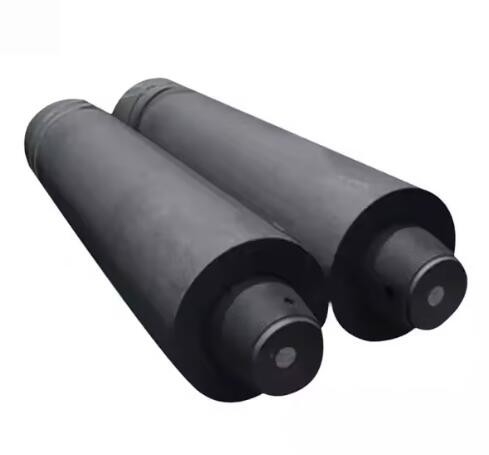

Description of Graphite Electrode


The graphite electrode will be a high-temperature graphite conductive material, the core of which consists of petroleum coke, tar coke as a filler, coal tar as a binder. We produce graphite electrodes and nipples to them. Graphite electrodes are characterized by low resistance, good electrical conductivity and thermal conductivity, high resistance to oxidation and thermal shock, high mechanical strength, etc.

If you have any requirements, please Contact Us. Our engineers will help you and provide appropriate advice.

★ Advantages of Graphite Electrode


The process of graphite electrode production is simple, high efficiency, small graphite loss

Fast processing speed, lower production costs

Different sizes available, including large diameter

Our graphite electrodes are very durable and have a long service life

★ Use of Graphite Electrode


For arc furnaces of electric arc furnaces. Graphite electrodes are most often used in a coal-smelting electric furnace.

For a closed arc

For a resistor furnace

For the production of graphite shaped products. The graphite electrode blank is also used for processing in various crucibles,shapes, boats and heating elements and other graphite products. For example, in the quartz glass industry, for each production of 1 ton of an electric melting tube, a graphite electrode 10 m is required, for each quartz brick of 1 ton it is necessary to consume 100 kg of graphite electrode.
