Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves

Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves
Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves

Large Image :  Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves

Product Details:
Place of Origin: Henan, China
Brand Name: RONGSHENG
Certification: ISO9001
Contact Now

Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves

Description
Type: Bricks Insulation Property: Good Insulation Property
Raw Material: Needle Coke Petroleum Coke Maximum Operating Temperature: Up To 1800°C
Main Phase: CA,CA2 Bulk Dentisy Min: 2.4
Einecs No: 236-875-2 Corrosion Resistance: Ability To Withstand Chemical Attack
Chemical Resistance: Acidic And Basic Slags Resistant Thermal Conductivity: 0.5 - 2.5 W/m·K
Cas No: 13530-50-2 Length: 1500--2700 Mm
Grade: RH , HP, UHP Water Absorption: 0.3% Max
Size: 7200*610*25/3600*610*50

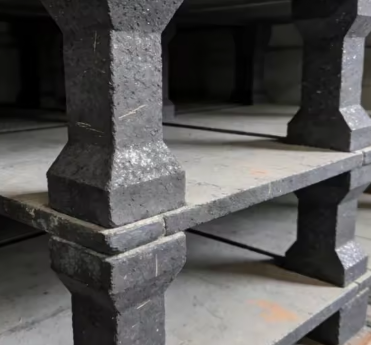

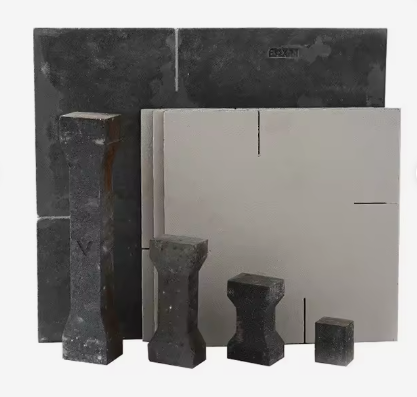

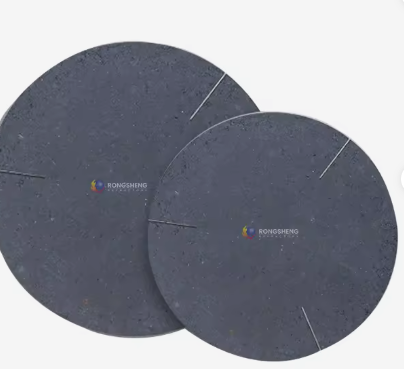

Silicon Carbide Plate SiC Kiln Shelves Description



Silicon carbide plate silicon carbide bricks, sheds, brackets and silicon carbide special-shaped parts produced with silicon carbide as the main raw material not only have the inherent characteristics of silicon carbide such as high strength and high hardness, but also have high refractoriness under load, fast heat conduction, anti-oxidation, It is not easy to shrink and deform under high temperature, and has the characteristics of long service life.


Silicon Carbide Plate SiC Kiln Shelves Types Silicon carbide plate used the high purity silicon carbide(SiC) and industrial silicon powder as the primary materials.Shaped by vibration,made by high sintering. We have various silicon carbide products: Silicon carbide Pipe&Tube&Beam&Roller&Pillar&Heating Element 1. Reaction Sintered Silicon Carbide Plates (RBSiC) 2. Recrystallized Silicon Carbide Ceramic Plates (RSiC) 3. Nitride Bonded Silicon Carbide Ceramic Plates (NBSiC) 4. Sintered Silicon Carbide Plates (SSiC) 5. Si3N4 Plates
Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves 0
Features
Silicon Carbide Plate SiC Kiln Shelves Features 1. Good thermal conductivity 2. Good high temperature strength 3. Wear resistant and erosion resistant 4. Good thermal shock resistance 5. Good corrosion resistance 6. Good oxidation resistance
Custom Size Sic Plate Silicon Carbide Ceramics Refractory Hearth Plates Nitride-Bonded Silicon Carbide Kiln Shelves 1
Specification
Properites
Units
Silicon carbide Material
Type

SiC
SiSiC
NSiC
RSiC
Chemical composition
SiC%
89
87
92
70
99
SiO2 %
5
6
-
Si3N4 28
-
Al2O3%
1.0
2.0
-
-
-
Bulk Desity
g/cm3
2.85
2.8
3.01
2.8
2.75
Apparent porosity
%
12
14
0.1
12
14
M.O.R.@20℃
MPa
50
48
260
180
100
M.O.R.@1300℃
MPa
58
56
280
185
120
C.T.E.@20℃-1000℃
10-6K-1
4.8
4.2
4.5
4.7
4.6
C.C.S
MPa
100
90
900
500
300
Thermal shock resistance
★
★★★★★
★★★★★
★★★★★
★★★★★
★★★★★
Max working temperature
℃
1450
1420
1300
1500
1650
application

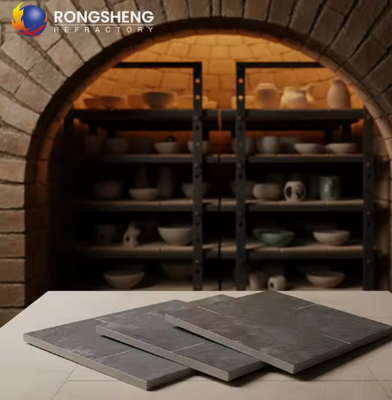

Used in ceramic shuttle kiln, tunnel kiln and roller kiln,Kiln furniture.
