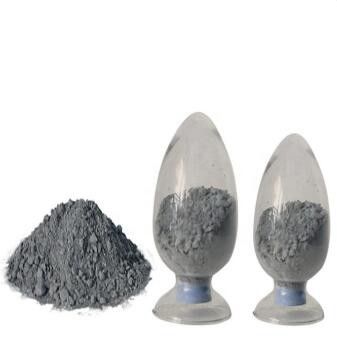

High Strength Powdery Refractory Castable For Furnace Liner

High Strength Powdery Refractory Castable For Furnace Liner
High Strength Powdery Refractory Castable For Furnace Liner High Strength Powdery Refractory Castable For Furnace Liner High Strength Powdery Refractory Castable For Furnace Liner

Large Image :  High Strength Powdery Refractory Castable For Furnace Liner

Product Details:
Place of Origin: Henan China
Brand Name: rongsheng
Certification: ISO9001
Model Number: Steel Fiber Refractory Castable
Payment & Shipping Terms:
Minimum Order Quantity: 1 TON

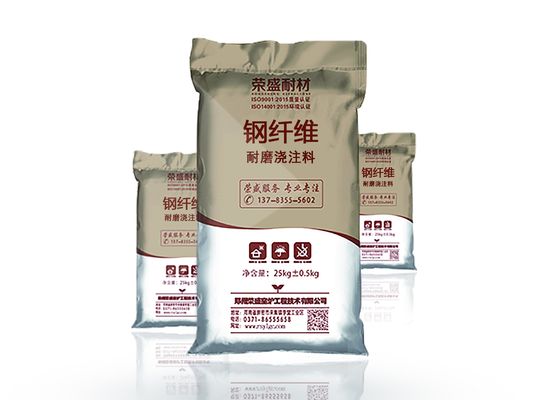

Packaging Details: Packed in pastic bags and water-proof cover
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union

High Strength Powdery Refractory Castable For Furnace Liner

Description
Material: Steel Fiber Color: Grey
Application: Wearable Parts Of Furnace Usage: Furnace Liner
Al2O3: 75%min Shape: Powder
Al2O3 Content (%): 75~85%
High Light:

Powdery Refractory Castable

,

High Strength Refractory Castable

,

shock resistant high alumina castable

Rong Sheng Good Volume Stability Refractory Castable For



Steel fiber castable belongs to the reinforced refractory castable material, which is mainly to add a certain size of heat resistant steel fiber in the refractory casting material, which is used to increase the strength and toughness of the building body. Generally, the refractory pouring material added by steel fiber is mainly high aluminum and rigid jade, so refractory steel fiber castable is also called steel fiber high aluminum castable material and steel fiber corundum castable material. Steel fiber castable has good structure stability and gas tightness, physical and chemical property, and also the great construction property. steel fiber castables are mainly used in the metallurgy, building and circulating fluidized bedboiler for resisting high temperature from damage.

High Strength Powdery Refractory Castable For Furnace Liner 0

Steel Fiber Castable Description

Steel fiber refractory castable is manufactured by adopting high purity raw materials and annexing agent and using ultramicro-pulverised powder addition technology in the sand mixer through strict process. Refractory steel fiber castable has good structure stability and gas tightness, physical and chemical property, and also the great construction property. Steel fiber castable as a kind of high strength castable refractory is made of high alumina clinker or brown aluminium oxide as the aggregate and powder, and added binding agent and suitable heat resistance stainless steel fibre and admixture.

Properties of Steel Fiber Castable

.High strength,

.Shock resistance,

.Thermal shock resistance,

.High temperature resistance,

.Good wear resistance,
.Long service life.

Manufacturing Process of Steel Fiber Castable

  1. First select suitable refractory materials according to the steel fiber casting materials to be prepared, and strictly control the quality of the casting materials.
  2. Prepare aggregate, powder, additive, binder and steel fiber in proportion to the formula, and control the size and grading of aggregate, powder particles and steel fiber.
  3. Mix the aggregate and powder separately, and then mix. After mixing, add steel fiber of about 20-35mm in length for stirring and mixing for about 10 minutes.
  4. The stirred dry materials shall be packaged with adhesive and additive seal for storage. Waterproof and moisture-proof measures shall be taken when stored to avoid agglomeration

Classification of Steel Fiber Castable

Steel fiber refractory castable can be classified into two types of stainless fiber castable refractory and nickeled stainless fiber reinforced refractory castable. Of which, nickeled stainless fiber reinforced refractory castable has better high temperature resistance property and resistance to rubbing.

Rongsheng Refractory Steel Fiber Castable Specifications

      Brands    Items YH-F16 YH-F16K YH-F17
Al2O3+SiO (%)≥ 70 75 80
Bulk density g/cm3≥ 110℃×24h 2.6 2.7 2.8
Modules of rupture Mpa≥ 1110℃×3h 11 12 13
110℃×24h 11 12 13
Cold crushing strength Mpa≥ 1110℃×3h 90 100 110
1110℃×3h 90 100 110
Linear dimensional change % 110℃×24h ±0.1 ±0.1 ±0.1
1110℃×3h ±0.3 ±0.3 ±0.3



Application of Steel Fiber Castable

Steel fiber refractory castable has a wide range of application in the steel, metallurgy, chemical, and construction industry. In most cases it is mainly used in the wearable parts because of the temperature change, such as the following place:

.Feed opening, lining of boiler used in the power plant, and cyclone separator;

.Circulating fluid bed boiler, rotary kiln, kiln mouth, kiln head cover, and back-feeder;

.Furnace exit, roof and walls

.Boiler, heat treatment furnace, and garbage incinerator, etc.

Steel Fiber Castable Manufacturer from RS Refractory Factory

RS refractory factory is a professional steel fiber refractory castable supplier that established in the early 90s of twenty century. RS refractory factory has specialized in refractory steel fiber castable for more than 20 years. if you have some demand of steel fiber castable, or have some questions on steel fiber castables about physical and chemical indicators, please contact us for free. and Rs refractory factory as a professional steel fiber refractory castable manufacturer in china, has some competitive advantages as follows:

Competitive Price: Make the products competitive in your market,

Abundant Experience: Prevent cracks and twist in bricks,

Different Moulds: Save mould fees for you,

Strict Quality Control: Meet clients’ quality requirement,

Large stocks: Guarantee prompt delivery,

Professional Packing: Avoid damage and secure the goods in transportation.
