Rongsheng 220kg/M3 Thermal Insulation Board 650-1300 C Dustless Calcium Silicate Boards For Industrial Furnaces

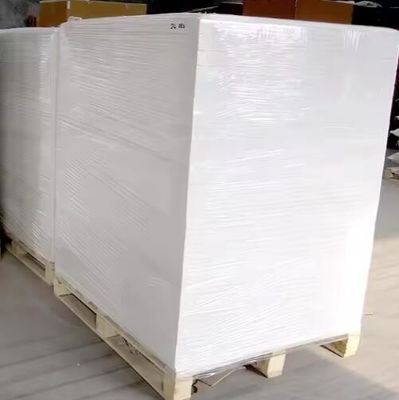

Large Image : Rongsheng 220kg/M3 Thermal Insulation Board 650-1300 C Dustless Calcium Silicate Boards For Industrial Furnaces

Product Details:

Place of Origin:	Henan, China
Brand Name:	RONGSHENG
Certification:	ISO9001

Contact Now

Rongsheng 220kg/M3 Thermal Insulation Board 650-1300 C Dustless Calcium Silicate Boards For Industrial Furnaces

Description

Highlight:

220kg/M3 Thermal Insulation Board

Dustless Calcium Silicate Boards

Industrial Furnaces Thermal Insulation Board

Description RONGSHENG calcium silicate insulation board is manufactured form xonotlite and reinforced fiber. It is entirely asbestos-free and non-poisonous to human body. calcium silicate insulation board is a kind of high efficiency and energy-saving product, with the maximum heat-resistant temperature up to 1000 ℃ . RONGSHENG calcium silicate insulation board has characteristics such as excellent thermal stability, corrosion resistance and convenient construction, can be widely used in industrial furnace insulation. Features  1. Moisture-proof, fire-resistant and corrosion-resistant 2. Good elasticity, high tensile strength and low shrinkage 3. Low thermal conductivity, low heat storage and long service life 4. Light weight, machinable and sound insulation



If you want to know more products, please contact us immediately, we have professional engineers to answer your questions

If you have more needs, we can customize the size, material, etc.

Product Application

Application Calcium silicate board for thermal insulation is widely used in thermal insulation, fire and sound insulation of equipment pipelines, walls and roofs in the fields of electric power, metallurgy, petrochemical, construction, and ships. Calcium silicate board for decoration is used for indoor partition and ceiling of buildings.It is a new type of building and industrial plate with excellent performance.

1. Small board: 595*595mm /600*600mm /603*603mm /595*1195mm /600*1200mm 2. Big board: 1200*2400mm /1220*2440mm /1220*3050mm 3. Thickness: 4.5, 5, 6, 8, 10, 12, 15, 18, 20, 25mm (3.5-30mm) Remark: Other specification is available.

Item		Specification
		GSG-1	GSG-2	GSG-3	GSG-4
SiO2 %		47~48
CaO %		44~45
Loss of ignition %		6~7
Bulk density kg/m3		230±10%	250±10%	270±10%	300±10%
Flexural strength MPa		≥0.45	≥0.50	≥0.55	≥0.6
Compressive strength MPa		≥0.8	≥0.9	≥1.0	≥1.1
Thermal conductivity W/(m·K)	200℃	≤0.085	≤0.095	≤0.098	≤0.102
	400℃	≤0.100	≤0.108	≤0.110	≤0.116
	600℃	≤0.152	≤0.156	≤0.158	≤0.164
	800℃	≤0.214	≤0.216	≤0.218	≤0.226
Using temperature ℃		1100
Linear contraction % 1050℃×12h		≤2
