High Quality Cordierite Mullite Ceramic Honeycomb Filter Plates 25,40,50,60 Cell Honeycomb Ceramic Regenerator For Rto Rco

Large Image : High Quality Cordierite Mullite Ceramic Honeycomb Filter Plates 25,40,50,60 Cell Honeycomb Ceramic Regenerator For Rto Rco

Product Details:

Place of Origin:	Henan, China
Brand Name:	RONGSHENG
Certification:	ISO9001

Contact Now

High Quality Cordierite Mullite Ceramic Honeycomb Filter Plates 25,40,50,60 Cell Honeycomb Ceramic Regenerator For Rto Rco

Description

Origin:	Xinmi	Appliction:	Tundish Lining
Modulus Of Rupture:	5-12MPa	Type:	High Alumina Castable
Max Service Temperature:	1300℃	Shape:	Power
Curing Time:	24 Hours	Cost:	Low
Bulk Density:	2.5-3.0 G/cm3	Service Temperature:	1000℃-1800℃
Product:	Acid-Resistant Castable	Compressive Strength:	≥80 MPa
Initial Setting:	＞1 Hour	Raw Material:	Spinel Bauxite
Mgo:	10%
Highlight:	cordierite mullite ceramic honeycomb filter plates , honeycomb ceramic regenerator for RTO RCO , refractory castable ceramic filter plates

Product Description

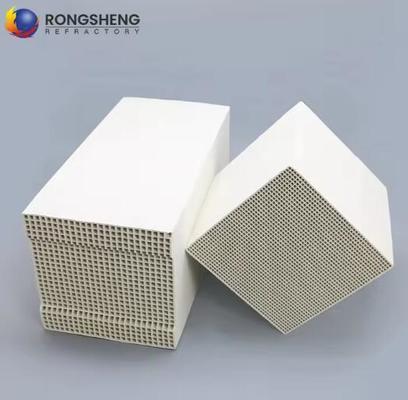

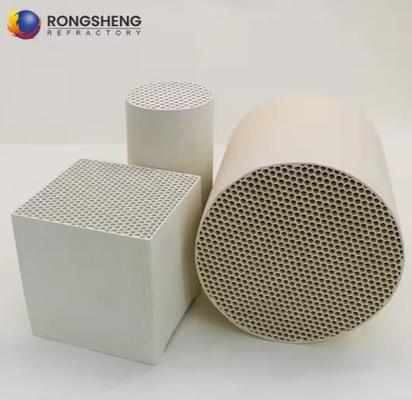

Mullite-Cordierite Honeycomb Ceramic For RTO/RCO System The honeycomb ceramic as heat transfer media is the key part for heat storing HTAC(High Temperature Air Combustion)technology,which has low heat expansion coefficient,large surface area,good heat stability and anti-corrosion.It has got wide application in many industrial productions(especiallu it was widely application in RTO/RCO system by domestic market and global market).Our company has produced more than 10 types of honeycomb ceramic heat storage substrate accoring to the USA and european series of honeycomb ceramic materials. RTO/RCO Honeycomb Ceramics Material: high alumina procelain,loose cordierite,mullite-cordierite,alumina procelain,corundum/Mullite etc. RTO/RCO Honeycomb Ceramics Features RTO technology and RCO technology are VOCs (volatile organic compounds) treatment technologies, which are mature technologies with wide application, good treatment effect, stable operation and low cost.

Specification

RTO/RCO honeycomb ceramics Main Size:

LWG(mm)	150x 150 x 300(150)
Number of Cell	25x25=625	40x40= 1600	43x43=1849	50x50=2500	60x60=3600
Width of Cell(mm)	4.95	3.02	2.81	2.38	1.98
Thickness of inner wall(mm)	1.0	0.7	0.65	0.6	0.5
Surface Area(m2/m3)	577	886	950	1084	1294
Opening Ratio(%)	68	65	65	63	63

RTO/RCO honeycomb ceramics Physical Properties:

Item	Aluminum Porceian-cordierite	Dense aluminum porcelain	Cordierite	Mullite-Cordierite	Mullite	Enamel
Density(g/cm3)	2.0~2.3	2.4~2.6	1.6~1.9	1.7~2.0	2.0~2.4	1.7~2.0
Bulk density (g/cm3)	0.65~0.8	0.65~0.8	0.6~0.7	0.65~0.75	0.65~0.8	0.65~0.75
Thermal Expansion Coefficient (X10-6°C-1) (RT-800°C)	≤6	≤6	≤3	≤3.5	≤5.5	≤6.5
Specific heat capacity (J/Kg.k)	950~1150	1000~1200	900~1100	900~1100	1000~1150	900~1100
Thermal Conductivity (w/m.k)(20-1000°C)	1.5~2.0	1.5~2.0	1.2~1.8	1.4~1.9	1.5~2.0	1.4~1.9
Thermal shock resistance Max Temperature(℃)	≥400	≥300	≥450	≥350	≥350	≥300
Advised Max Temperature(℃)	1250	1350	1150	1250	1450	1200
Water Absorption Rate(%)	≤20	≤5	≤22	≤20	≤20	≤10

RTO/RCO honeycomb ceramics Chemical composition:

Item	Aluminum Porceian-cordierite	Dense aluminum porcelain	Cordierite	Mullite-Cordierite	Mullite	Enamel
SiO2	25~35	25~35	45~55	40~50	25~35	68~72
Al2O3	55~65	55~65	28~38	55~65	55~65	22~26
MgO	2~4	2~4	11~14	5~9	≤2	≤0.5
Fe203+TiO2	1~4	1~4	1~3	1~3	1~4	1~3
Others	≤5	≤5	≤5	≤5	≤5	≤5

Product Application

RTO/RCO Honeycomb Ceramics Application Typical Application: high temperature heat accumulation and exchange in industrial waste gas treatment for metallurgical ,chemical and construction material idustries.

Packing & Delivery

Wooden pallets with plastic film or according to your request.1. Strong packing protects the goods from any possible damage during transit. 2. Solid packing and overall stuffing prevent the cases from vibration and jarring. 3. Necessary precaution is taken to protect goods from pilferage or rain. 4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.Delivery Detail:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
