Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace$

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace$

Large Image : Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace

Product Details:

Place of Origin:	Henan, China
Brand Name:	RONGSHENG
Certification:	ISO9001

Contact Now

Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace

Description

Sample:	Free	Volume Density:	≥2.20g/cm3
Modulus Of Rupture:	≥ 8 MPa	Flexural Strength:	≥10MPa
Aluminum Content:	≤75%	Feature:	High Load Softening Starting Temperature
Thermal Expansion:	0.6-1.2%	Frost Resistance:	High
Moisture Absorption:	Low	Cold Crushing Stren:	35-45
Abrasion Resistance:	Excellent	Bending Strength:	≥25MPa
Type:	Factory	Brick Type:	Refractory
Refractoriness:	≥ 1780°C
Highlight:	high alumina refractory checker brick , silica checker bricks for hot blast stove , refractory checker bricks for regenerative furnace

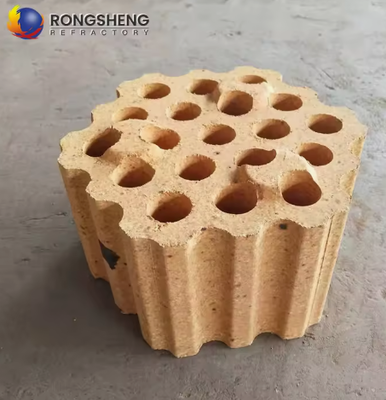

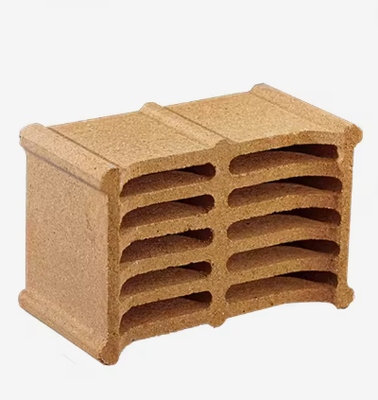

Refractory Checker Brick Description Checker bricks are widely recognized and accepted by the world's ironmaking industry as a heat transfer and heat storage body with many superior thermal properties such as strong heat exchange capacity, large heat storage area, smooth ventilation, and low resistance. Checker bricks are a heat transfer medium, mainly used in the upper and middle parts of the heat storage chamber of the hot blast furnace to store heat. In the process of heating cold air into hot air, it plays an extremely important role.

We can provide various types of refractory checker bricks according to customer needs and kiln conditions, such as silica checker bricks, clay checker bricks, high alumina checker bricks, mullite checker bricks, sillimanite checker bricks, etc.

Product Features

Refractory Checker Brick Features Good volume stability, excellent high temperature load creep performance, high density and low porosity, strong heat exchange capacity, large heat storage area

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace 0$

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace 1$

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace 2$

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace 3$

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace 4$

Product Application

Refractory Checker Brick Application Checker brick has become an indispensable and important material in the ironmaking industry with its superior thermal properties and wide application fields. The application of checker brick is not limited to blast furnace hot blast furnaces, it is also used in other industrial fields such as flame furnaces.

Specification

Item	Silica Brick for Hot Blast Stove
	Wall bricks , Dome Bricks	Checker Brick


SiO2 %	≥95	≥95
A12O3%	≤1.0	≤1.0
Fe2O3%	≤1.0	≤1.0
Apparent Porosity%	≤22	≤24
True Densityg/cm3	≤2.33	≤2.33
Cold Crushing StrengthMPa	≥40	≥35
Refractoriness Under Load (0.2MPa) ℃	≥1650	≥1650
Residual Quartz%	≤1.0	≤1.0
Creep Rate 0.2MPa ((1550℃*50h) %	≤0.8	≤0.8
Reheat Linear Change ( 1450℃*2h) %	≤0.2	≤0.2
Heat Expansion Coefficient (1000℃) %	≤1.26	≤1.26

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace 5$

Packaging & Shipping

$Industrial Refractory Checker Brick High Alumina Silica Checker Bricks For Hot Blast Stove And Regenerative Furnace 6$
