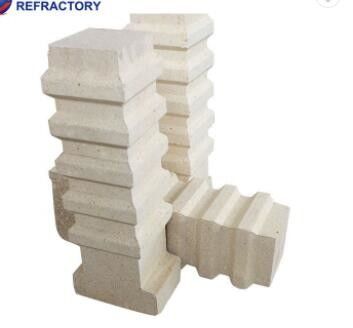

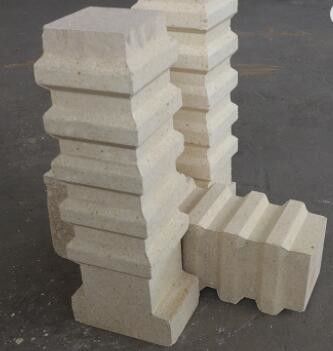

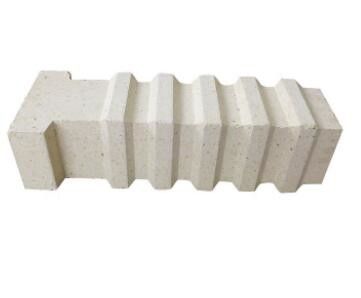

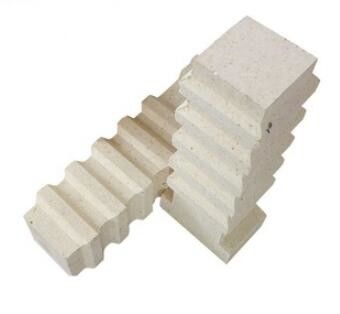

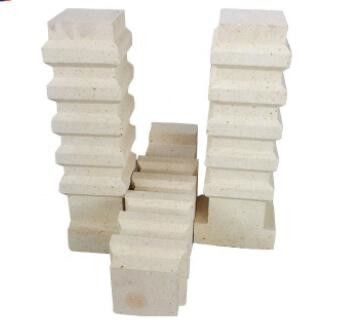

70% Alumina Refractory Anchor Brick For Industrial Furnace

70% Alumina Refractory Anchor Brick For Industrial Furnace
70% Alumina Refractory Anchor Brick For Industrial Furnace 70% Alumina Refractory Anchor Brick For Industrial Furnace 70% Alumina Refractory Anchor Brick For Industrial Furnace 70% Alumina Refractory Anchor Brick For Industrial Furnace 70% Alumina Refractory Anchor Brick For Industrial Furnace

Large Image :  70% Alumina Refractory Anchor Brick For Industrial Furnace

Product Details:
Place of Origin: Zhengzhou ,China
Brand Name: Rongsheng
Certification: ISO9001
Model Number: LZ55/LZ65/LZ75
Payment & Shipping Terms:
Minimum Order Quantity: 1 TON
Price: 200-800USD
Packaging Details: packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30DAYS
Supply Ability: 2000tons /month

70% Alumina Refractory Anchor Brick For Industrial Furnace

Description
Material: Alumina Block SiO2 Content (%): -
Al2O3 Content (%): ≥65% MgO Content (%): 0.8-1.2
CaO Content (%): 0.34% Refractoriness (Degree): Common (1580°< Refractoriness< 1770°)
CrO Content (%): 0.1-0.3% SiC Content (%): 1.2-1.4
Model Number: Anchor Brick Bulk Density(kg/m3): 2.0-2.5g/cm3
Color: Yellow Application: Industrial Furnace
High Light:

70% Alumina Anchor Brick

,

ISO9001 Anchor Brick

,

anchor refractory brick

High Quality 70% High Alumina High Temperature Yellow Refractory Anchor Brick For Industrial Furnace



Anchor refractory brick is a kind of refractory brick for industrial furnace top construction. anchor fire brick includes cylinder formed by suspended end and anchoring body, and there is grooves distributing on the bricks body. Its refractoriness is over 1700℃. anchor refractory block can be used in all kinds of industrial kilns. and anchor firebrick is widely used for the roof and walls of the heating furnace with features of high strength, good mechanical performance and good anti-strip performance.

Anchor Refractory Brick Description

Anchor blocks include suspended bricks and perforaled tiles with forming processes of two types of mechanical pressing and pouring forming. according to customers’ operating requirements, choose the basically the same structure materials with castable refractory of furnace lining through firing in the high temperature. anchor block has high strength, good erosion resistance property and good spalling resistance, which have the basically the same expansion with furnace lining refractory castable.

anchor refractory brick

Properties of Anchor Refractory Brick

.High refractoriness,

.High strength,

.Good spalling resistance,

.Low thermal conductivity,

.Good mechanical performance,

.Excellent thermal shock resistance.

Manufacturing Process of Anchor Refractory Brick

Anchor brick is made of high quality of bauxite as the raw materials containing 48~80% alumina content and formed through pressing and firing in the high temperature. anchor blocks are mainly used in thermal furnaces such as heating furnace, coal chemical industry kiln and electric furnace top.

Rongsheng Refractory Anchor Refractory Brick Specifications

Anchor Refractory Brick
Item RS – 85 RS – 80 RS – 75 RS – 65 RS – 55 RS – 48
Al2O3 % ≥85 ≥80 ≥75 ≥65 ≥55 ≥48
Apparent Porosity % ≤23 ≤22 ≤23 ≤23 ≤22 ≤22
Cold Crushing Strength Mpa ≥55 ≥55 ≥53.9 ≥49 ≥44.1 ≥39.2
Refractoriness ℃ ≥1790 ≥1790 ≥1790 ≥1790 ≥1770 ≥1750
Refractoriness Under Load 0.2Mpa ℃ ≥1550 ≥1530 ≥1520 ≥1500 ≥1470 ≥1420
Permanent Linear Change 1500℃*2h -0.4~0.1 -0.4~0.1 -0.4~0.1 -0.4~0.1 -0.4~0.1 *
1450℃*2h           -0.4~0.1
