High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick

Name: High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick
Brand: Zhengzhou Rongsheng Refractory Co., Ltd.
Price: 15,000.00 USD
Availability: InStock

All Products

Kiln Refractory Bricks
(134)

Refractory Fire Bricks
(36)

High Alumina Refractory Brick
(127)

Micro Nano Insulation Material
(34)

Zirconium Silicate Ceramics
(18)

Fireclay Brick
(39)

Refractory Raw Materials
(14)

Silica Refractory Bricks
(44)

Magnesia Bricks
(69)

Corundum Brick
(40)

Insulating Fire Brick
(47)

Mullite Brick
(42)

Refractory Castable
(146)

Refractory Products
(59)

Ceramic Fiber Blanket
(55)

Furnace Bricks
(19)

Fireplace Refractory Brick
(14)

Graphite Electrode
(31)

Best Products

$The Hot-Selling And Customized Size Magnesite Chrome Refracotry Brick For Glass Kiln Furnace$

The Hot-Selling And Customized Size Magnesite Chrome Refracotry Brick For Glass Kiln Furnace

$Good Creep Resistance Kiln Refractory Low Porosity Small Fire Bricks Andalusite Brick As The Lining And Checker$

Good Creep Resistance Kiln Refractory Low Porosity Small Fire Bricks Andalusite Brick As The Lining And Checker

$Dry Pressed Kiln Refractory Bricks$

Dry Pressed Kiln Refractory Bricks

Customer Reviews

Products have high quality&Service was outstandingly friendly and efficient

—— Aslam Baig (Pakistan)

The seller is very kind, thanks for recommending the right products for our cement kilns.

—— Santhosh Thomas

The sample meets our need, hope we can start our first order quickly.

—— Tanveer Ahmed

I'm Online Chat Now

High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick

$High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick$

$High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick$

Large Image : High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick

Product Details:

Brand Name:	RONGSHENG
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Ton

Contact Now

High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick

Description

Origin:	Xinmi	Porosity:	≤22%
Cold Crushing Streng:	≥24.5	Mgo:	76%
Refractoriness Under Load:	Min 1620°C	Refractoriness:	≥1790℃
Iron Content:	≤2.0%	Working Temperature:	1780C
Raw Materials:	Phosphate	Shape Tolerance:	±1mm
Temp:	1600 Degree	Apparent Orosity:	≤22%
Type:	Phosphate Bonded	Thermal Conductivity:	≤1.5W/m·K
Weight Of Brick:	3-4KG/Pices
Highlight:	silicon manganese nitride lump metal , s3n4 mn5n2 lump metal , silicon manganese nitride metal lumps

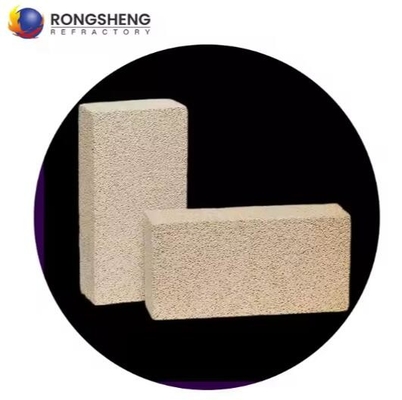

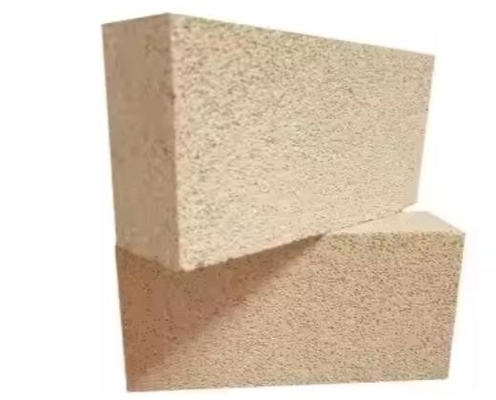

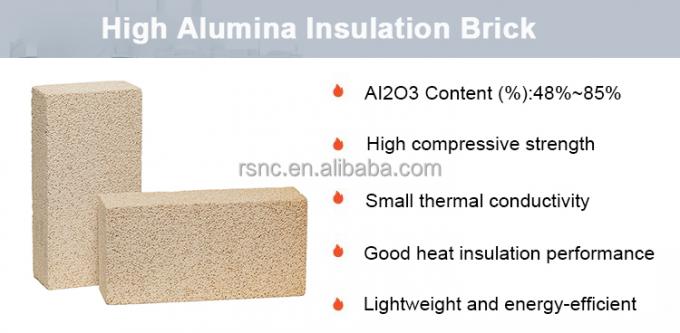

Introduction of High Alumina Insulation Brick  Light Weight High Alumina Brick, also known as high-aluminium heat insulating brick, Light weight high alumina bricks contain more than 48% alumina oxide. This kind of brick does not directly exposed to high temperature inside kilns or furnaces, it only built closely to the kiln wall as insulations. It is a good insulation refractory material, which has a high compressive strength, low thermal conductivity and good insulation quality.High Alumina Insulation Brick Features 1. High refractoriness, can reach 1650-1800ºC 2. High mechanical intensity. 3. Low levels of iron and other impurities. 4. Good thermal shock resistance. 5. Chemical stability. 6. High porosity, low volume density, good thermal insulation effect,energy-efficient. 7. Low thermal conductivity, stable quality. 8. Excellent thermal shock resistance. 9. Strong resistance to the corrosive gas and slag.

$High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick 0$

Specification

High Alumina Insulation Brick Technical Data:

Item	Light Weight High Alumina Brick Specification

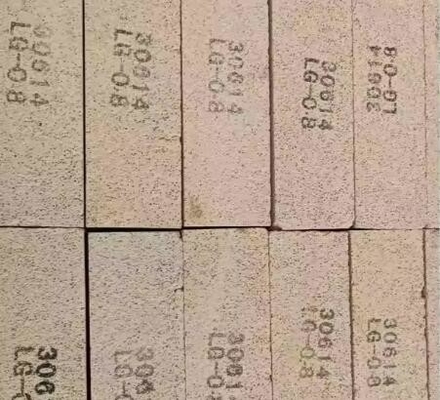

Item	LG-1.2	LG-1.0	LG-0.8	LG-0.7	LG-0.6	LG-0.5
Al2O3 %	≥48
Fe2O3 %	≤2
Bulk Density, g/cm3	≤1.2	≤1.0	≤0.8	≤0.7	≤0.6	≤0.5
CCS, MPa	≥4.5	≥3.5	≥2.5	≥2.2	≥1.6	≥1.2
PLC, %	1400℃×12h ≤-2			1350℃×12h ≤-2		1250℃×12h ≤-2
Thermal Conductivity, W/(m·K) 350±25℃	≤0.55	≤0.50	≤0.35	≤0.30	≤0.25	≤0.20

$High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick 1$

$High Temperature Kiln Boiler Refractory And Thermal Insulation Materials High Alumina Refractory Brick Insulating Firebrick 2$

Product Application

Application of High Alumina Insulation Brick

Light Weight High Alumina Brick is used in parts that is not exposed to abrasions and high temperature of melted matters. They should not be applied in environment that has a temperature higher than 1350℃.The light weight high alumina bricks are applied in: .Furnace Lining And Insulation Layers .Ceramic Tunnel Kiln .Roller Kiln .Shuttle Kiln .Heating Furnace & Coking Furnace In Iron And Steel Industry .Other Thermal Equipment & Heat Treatment Lining
