Product Details:
|
| Tempreture: | 1260 | Chemical Resistance: | Excellent |
|---|---|---|---|
| Compressive Strength: | 0.08MPa | Packing: | Inside Plasric Bag |
| Use: | Insulation | Bulk Density: | 96-280kg/m3 Or As Requirements |
| Thickness: | 25mm | Chemical Content: | Al2O3+SiO2 |
| Fire Resistance: | Non-combustible | Tensile Strength: | 0.08MPa |
| Flame Resistance: | Non-flammable | Usage: | Industrial, Commercial, Residential |
| Length: | 7200mm | Package: | Braided Bag/carton |
| Temperature Rating: | 1260°C | ||
| Highlight: | Thermal Insulation Ceramic Fiber Gasket,Bio Soluble Ceramic Fiber Gasket,1430C Ceramic Fiber Gasket |
||

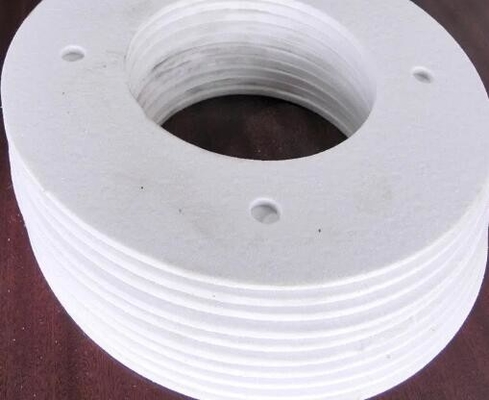

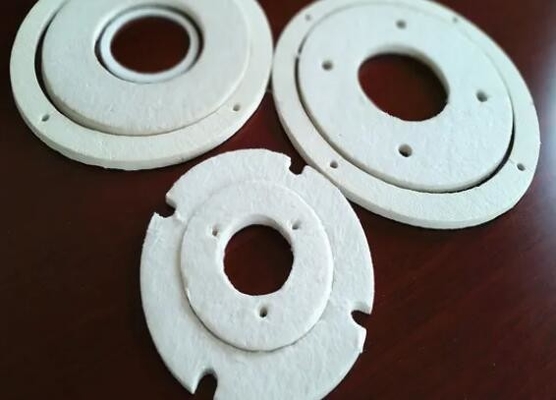

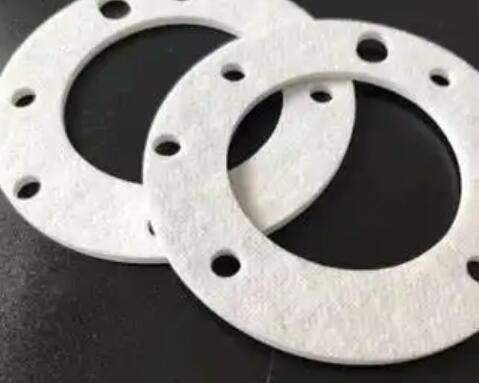

Ceramic fibre paper bio soluble heat resistance fiber gasket 1430C ceramic wool paper thermal insulation materials
Ceramic Fiber Paper(ceramic fiber wool paper gasket) is processed from the high purity fiber, which can be used in the field of high temperature insulation. Because we have adopted the advanced processing work, we cannot only make the fiber interweave shapely, but also can control the thickness and the density rigidly.
We can produce Standard ceramic fiber paper,High pure ceramic fiber paper,High Aluminium ceramic fiber paper,Zirconium ceramic fiber paper,the use of temperature can reach 1350C, and have excellent eco-friendly performance.
Characteristics of ceramic fiber paper:
1:Low thermal capacity
2:Low thermal conductivity
3: Excellent electrical insulation properties
4:Excellent machining performance
5: High strength, tear resistance
6: High flexibility
7:Low slag content
8:Excellent fire proof property
Standard size:
60000x610x1mm / 30000x610x2mm / 20000x610x3mm / 15000x610x4mm / 12000x610x5mm / 10000x610x6mm
Specifications of ceramic fiber paper:
| Type | Standard ceramic fiber paper | High pure ceramic fiber paper | High Aluminium ceramic fiber paper | Zirconium ceramic fiber paper | |
| Chemical analysis (%) | AL2O3 | 43 | 47 | 55 | 38 |
| SiO2 | 53 | 51 | 44 | 44 | |
| Fe2O3+Ti2O3 | ≤1.2 | ≤0.3 | ≤0.3 | ≤0.2 | |
| CaO+MgO | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | |
| NaO+K2O | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.2 | |
| Crganic Content (%) | 5% | ≤5% | ≤5% | ≤5% | |
| Density(kg/m3) | 180-220 | 180-220 | 180-220 | 180-220 | |
| Work Temperature | 1050 | 1150 | 1250 | 1350 | |
| Thickness | 0.5-12mm | ||||
| size (mm) | 40000x1220x1;40000x610x1; 30000x1220x2; 30000x610x2;20000x1220x3;20000x610x3;15000x610x4; 10000x610x5 | ||||
