Factory Price 30mm 50mm 100mm Grinding Mining Balls Forged Steel Ball For Ball Mill

Large Image : Factory Price 30mm 50mm 100mm Grinding Mining Balls Forged Steel Ball For Ball Mill

Product Details:

Place of Origin:	Henan, China
Brand Name:	RONGSHENG
Certification:	ISO9001

Contact Now

Factory Price 30mm 50mm 100mm Grinding Mining Balls Forged Steel Ball For Ball Mill

Description

Usage:	Liner	Weight Of Brick:	3-4KG/Pices
Aluminum Content:	≥35%	Color:	White Or Light Yellow
Work Temperature:	1400C	Length:	1800mm-2700mm
Dry Bulk Density:	≥2.5g/cm3	Transportation:	Shipping
Carbon Content:	99%	Refractoriness Under Load:	Load: Min 1620°C
Package:	Wooden Pallet Or Carton	Keyword:	Low Porosity Fire Clay Brick
Crushing Strength:	≥50MPa	Cold Crushing Mpa:	350
Chemical Resistance:	Excellent
Highlight:	30mm Grinding Mining Balls , 50mm Grinding Mining Balls , 100mm Grinding Mining Balls

Product descriptions from the supplier

Product Description

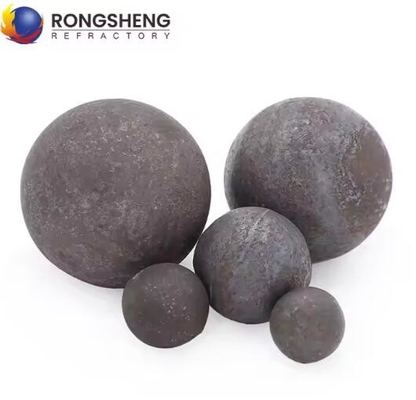

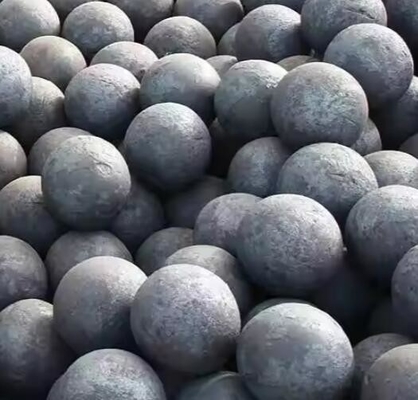

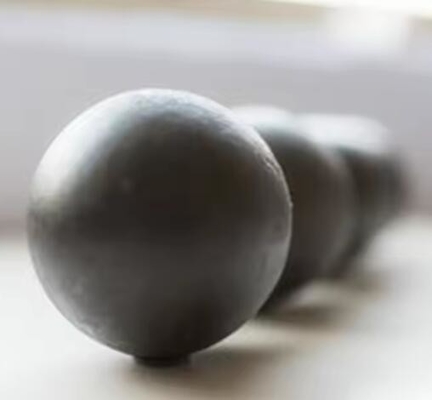

Our grinding balls have many excellent properties, such as high hardness, light specific gravity, high toughness, less broken, great shock-absorbing, high performance of anti-fatigue and the strong ability of shocking hardened layer. It’s widely used in the field of cement and building materials, thermal powder, the grinding mill of the beneficiation, steel and chemical industry, aerated bricks and alumina industry.

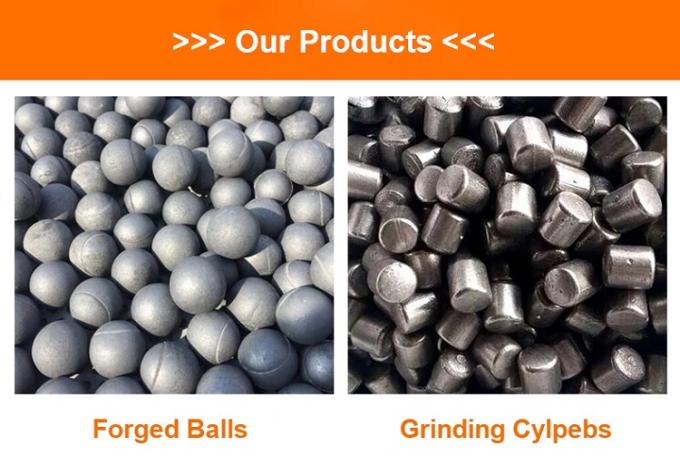

Grinding ball and grinding cylpebs are grinding media of the grinding machine. Their main function is to grind the material in the grinding machine to meet the use standard.

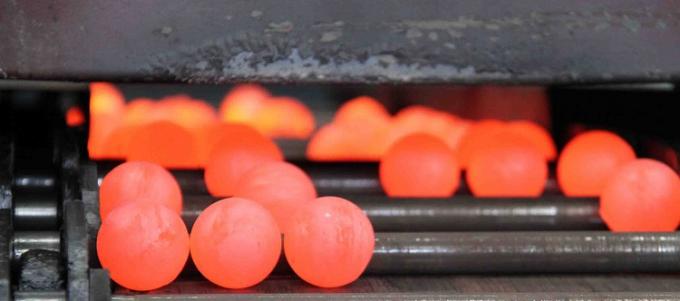

We can produce three types of wear-resistant steel balls: forged steel balls, cast steel balls, and hot-rolled steel balls.

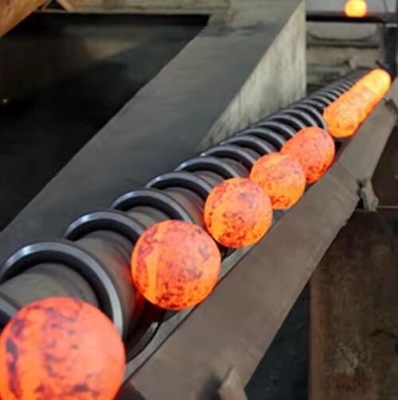

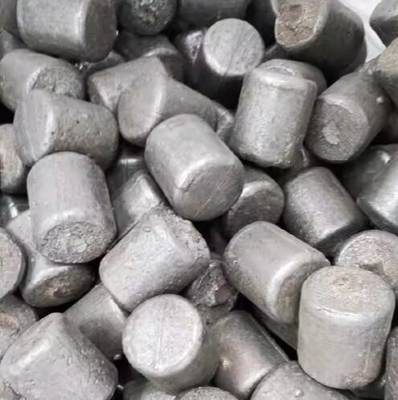

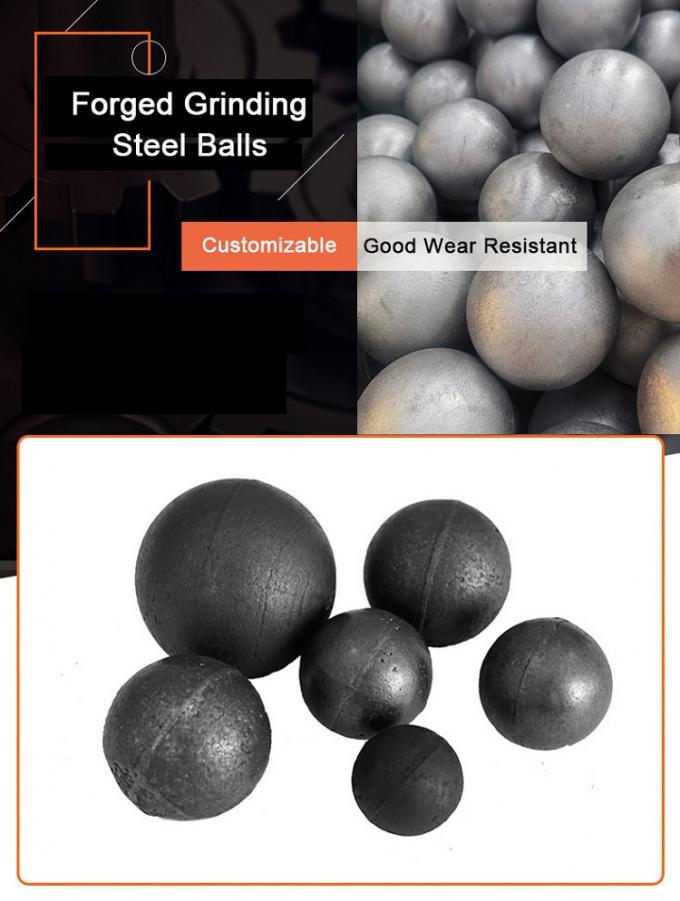

CASTING GRINDING BALLS: Diameter 10mm-160mm, Hardness 46-68HRC, Breakage rate: <0.5%. The life of high chrome balls are 2-3 times of forged balls. We produce the strong microscopic structure, for good performance. FORGED GRINDING BALLS: Diameter 20mm-160mm Material-We use the high quality bar as raw material. High end heat treatment technology, guarantee the long wear life. From "tough surface" to "tough core". GRINDING CYLPEBS: Diameter 8mm-60mm. High Hardness: 45-68HRC. Low breakage: less than 0.5%. Impact toughness: more than 12J/square centimeter. Density: 7.8-7.85g/square centimeter. Impact to broken(times): more than 18000.

Product Application

Grinding steel balls are widely used in ball mills in industries such as metallurgical mines, cement and building materials, thermal power generation, flue gas desulfurization, magnetic materials, chemicals, coal water slurry, pellets, slag, ultrafine powder, fly ash, calcium carbonate, quartz sand, etc.

Specification

Diameter Tolerance and Roundness
Nominal diameter	30	40	50	60	70	80	90
Tolerance(mm)	±2				+3,-2
Roundness (%)	≤2				≤3

Nominal diameter	100	110	120	125	150
Tolerance(mm)	+4,-3				+5,-4
Roundness (%)	≤4				≤5

Chemical Composition
Brand	C(%)	Si(%)	Mn(%)	Cr(%)	Cu(%)	Mo(%)	P(%)	S(%)	Ni(%)
45#	0.42-0.50	0.17-0.37	0.5-0.80	0-0.25	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
40Mn	0.37-0.44	0.17-0.37	0.7-1.0	0-0.25	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
50Mn	0.48-0.56	0.17-0.37	0.60-1.0	0-0.25	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
60Mn	0.57-0.65	0.17-0.37	0.70-1.0	0-0.25	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
65Mn	0.62-0.70	0.17-0.37	0.90-1.0	0-0.25	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
70Mn	0.67-0.75	0.17-0.37	0.90-1.20	0-0.25	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
40Cr	0.37-0.45	0.17-0.37	0.50-0.8	0.80-1.1	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
42CrMo	0.38-0.45	0.17-0.37	0.50-0.80	0.90-1.2	0-0.03	0.15-0.25	0-0.035	0-0.035	0-0.30
70Cr2	0.65-0.75	0.20-0.30	0.75-0.90	0.55-0.70	0-0.25	0-0.30	0-0.030	0-0.030	0-0.30
40Mn2	0.37-0.44	0.17-0.37	1.4-1.8	0-0.25	0-0.25	0-0.30	0-0.035	0-0.30	0-0.30
70Mn2	0.65-0.75	0.20-0.45	1.4-1.8	0-0.25	0-0.25	0-0.30	0-0.035	0-0.030	0-0.30
B-1	0.52-0.65	0.17-0.37	0.60-1.2	0-0.25	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
B-2	0.70-0.80	0.17-0.37	0.70-0.80	0.50-0.60	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
B-3	0.58-0.66	1.2-1.6	0.65-0.80	0.70-0.90	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
B-4	0.60-0.65	1.6-1.7	0.7-0.8	0.7-0.8	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
B-6	0.75-0.85	0.2-0.40	0.9-1.0	0.85-0.95	0-0.25	0.06-0.13	0-0.035	02-0.035	0.06-0.13
B-6A	0.82-0.95	0.20-0.40	0.92-1.02	0.80-0.95	0-0.25	0.06-0.10	0-0.035	0-0.035	0.06-0.10
B-7	0.35-0.40	0.17-0.37	0.7-0.8	0.9-1.0	0-0.25	0-0.30	0-0.035	0-0.035	0-0.30
BU	0.95-1.05	0.17-0.37	0.9-1.10	0.40-0.60	0-0.15	0-0.05	0-0.035	0-0.035	0-0.30
Gr15	0.95-1.05	0.15-0.35	0.20-0.40	1.30-1.65	0-0.25	0-0.10	0-0.027	0-0.020	0-0.10

Technical Specification
Brand	Breakage rate	Hardness(HRC)	Impact value(J/cm²)	Drop times	Micro structure
45#	<1%	≥45	≥12	≥8000	M+C
40Mn	<1%	≥50	≥12	≥10000	M+C
50Mn	<1%	≥55	≥12	≥10000	M+C
60Mn	<1%	≥55	≥12	≥12000	M+C
65Mn	<1%	≥58	≥12	≥12000	M+C
70Mn	<1%	≥60	≥12	≥12000	M+C
40Cr	<1%	≥55	≥12	≥12000	M+C
42CrMo	<1%	≥55	≥12	≥12000	M+C
70Cr2	<1%	≥58	≥12	≥12000	M+C
40Mn2	<1%	≥55	≥12	≥12000	M+C
70Mn2	<1%	≥58	≥12	≥12000	M+C
B-1	<1%	≥55	≥12	≥12000	M+C
B-2	<1%	≥58	≥12	≥15000	M+C
B-3	<1%	≥60	≥12	≥15000	M+C
B-4	<1%	≥60	≥12	≥15000	M+C
B-6	<1%	≥60	≥12	≥15000	M+C
B-6A	<1%	≥60	≥12	≥15000	M+C
B-7	<1%	≥60	≥12	≥15000	M+C
BU	<1%	≥60	≥12	≥15000	M+C
Gr15	<1%	≥60	≥12	≥15000	M+C

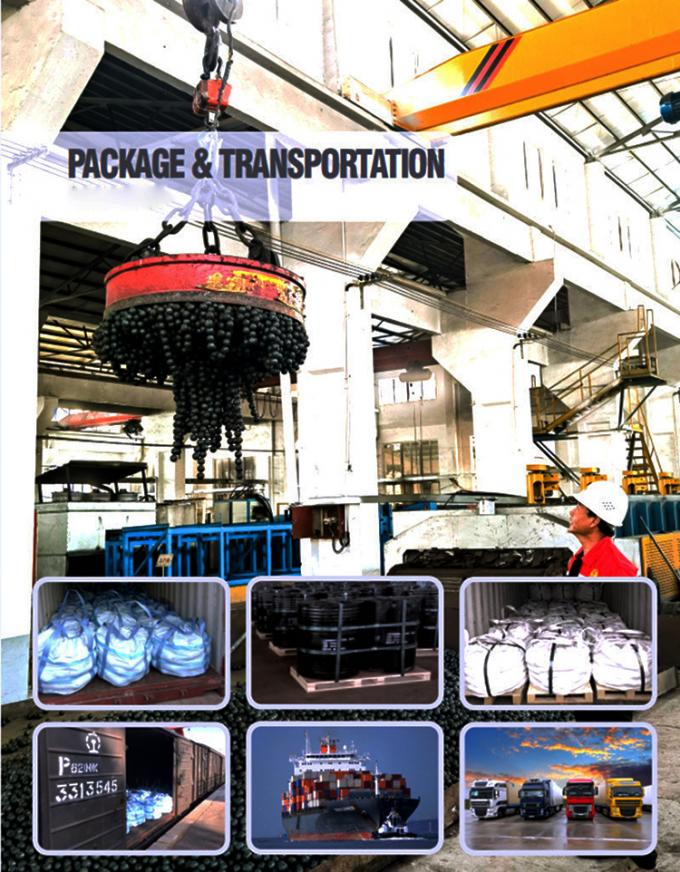

Packing & Delivery

1.Professional export transport packaging 2. Packing according to customer requirements 3.Transportation: express delivery, land transportation, sea transportation, air transportation
