Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace

Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace
Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace

Large Image :  Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace

Product Details:
Place of Origin: Henan, China
Brand Name: RONGSHENG
Certification: ISO9001
Contact Now

Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace

Description
Highlight:

zirconium fiber refractory module

,

ceramic fiber insulation for furnace

,

high temperature refractory module 1600°C

Ceramic Fiber Module Descriptions Ceramic fiber module are made from compressed ceramic fiber blanket.Ceramic fiber module is produced by various anchoring systems, white color, regular size, good refractory heat insulation effect, classified temperature 1050-1600 °C, used in various kiln lining insulation and various thermal equipment lining.
Ceramic Fiber Module Characteristics Low bulk density,low thermal conductivity. Resistance to heat-shock, ability to resist the scouring of airflow. Excellent mechanical strength ,Good safety with anchor inside Easy to install. after installing the lining form a seamless space, good insulation effect.

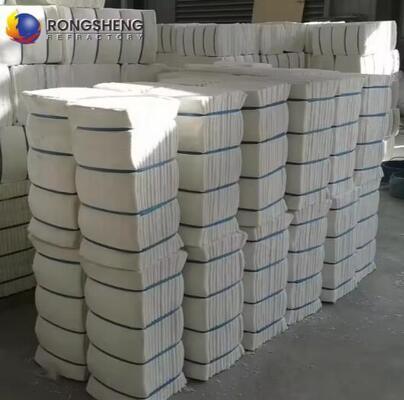

Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace 0

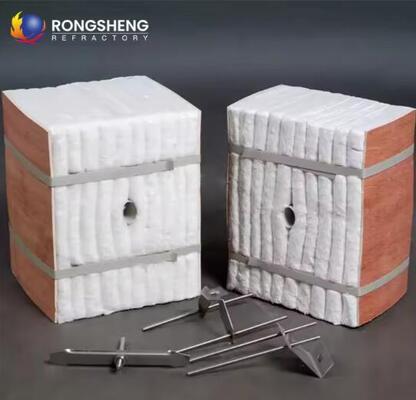

Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace 1
Specification
Ceramic fiber modules can be divided into the following types based on temperature grade 1050℃ Ordinary ceramic fiber module 1260℃ Standard ceramic fiber module 1260℃ High purity ceramic fiber module 1350℃ High aluminum ceramic fiber module 1430℃ Zirconium type ceramic fiber module 1600℃ ceramic fiber module
Ceramic Fiber Module
RS1050
RS1260ST
RS1260HP
RS1350
HA
RS1430
Zr
RS1600
PMF
Classification Temperature
1050
1260
1260
1350
1430
1600
192kg/m3/at()℃/24h
Linear Shrinkage Rate
≤2.0
(850℃)
≤2.0
(1000℃)
≤2.0
(1050℃)
≤2.0
(1100℃)
≤2.5
(1200℃)
≤1.5
(1450℃)

Density (KG/M3)
172-240
172-240
172-240
172-240
172-240
172-240

Thermal Conductivity Rate(W/m.k)
400℃
0.08
0.08
0.08
0.08
0.08
-

600℃
0.15
0.15
0.15
0.12
0.12
0.12

800℃
0.22
0.20
0.19
0.18
0.16
0.15

1000℃
-
-
0.22
0.12
0.19
0.18
Chemical Composition(%)
Al2O3
42-44
45-46
47-49
52-55
34-36
72-75

Al2O3+SiO2
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0

ZrO3
-
-
-
-
15-17
-

Other
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0

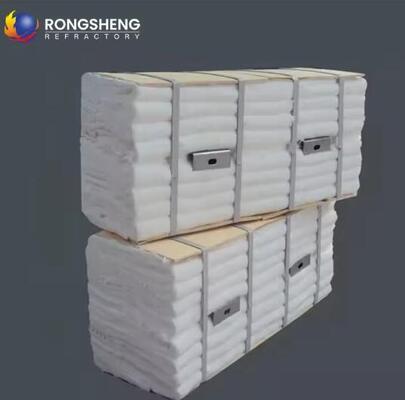

Low Thermal Conductivity HZ Zirconium Fiber Module Refractory Thermal Insulation 1600°C Ceramic Fiber Module For Boiler Furnace 2
