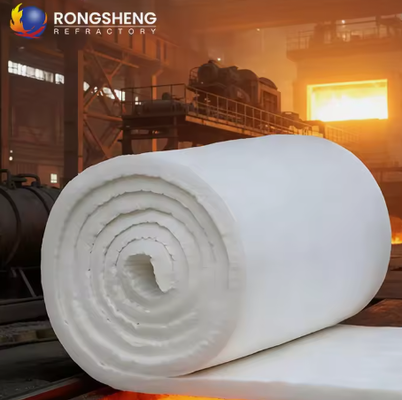

Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket

Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket
Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket

Large Image :  Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket

Product Details:
Place of Origin: Henan, China
Brand Name: RONGSHENG
Certification: ISO9001
Contact Now

Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket

Description
Package: Bag Or Carton Box Or Pallet Fiber Diameter: 3-5um
Service Temperature: 1000-1300 Degree Efractoriness: 1790
Length: Up To 25 Meters Tensile Strength: 5.6 Psi
Working Temperature: 1200℃ Colour: White
Thermal Conductivity: 0.165 Maximum Temperature: 2300°F
Apparent Porosity: 18 Compressive Strength: 0.08 MPa
Color: White To Off-white Applications: Furnace Linings, Insulation, Fire Protection
Grade: COM (Common)

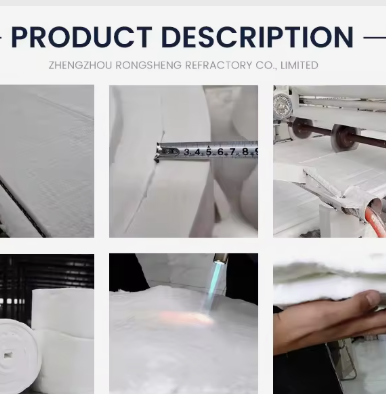

Product Description

Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket 0



Ceramic Fiber Blanket Description


[FIREPROOF INSULATION] kaowool fireproof ceramic fiber insulation blanket is rated to 2400F so that it can maintain complete shape and size after the fire burns. Our ceramic fiber blanket brings you excellent thermal shock resistance and low heat storage capacity.

[HIGH QUALITY & DURABILITY] The high temperature insulation blanket is 128 Kg/ M3 density, contains no binders and is completely inorganic. These rockwool insulation have high tensile strength for longer life and durability.
[EASY TO USE]Our ceramic fiber blanket thickness is even, flexible, and easy to install.
[WIDELY APPLICATIONS] Perfect ceramic fiber insulation for furnace, kiln, dishwasher insulation blanket, oven insulation, wood stove, welding, foundry, refractory, glass blowing, and jewelry making.
[100% SATISFACTION GUARANTEE] Order with confidence! Every kaowool fireproof ceramic fiber insulation blanket has been tested strictly to ensure higher quality.

We are committed to providing the High-quality ceramic fiber blanket to all our customers forever! Our products are thermally efficient and lightweight making them an ideal choice in your insulation needs.
Advantages

Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket 1



Features of Ceramic Fiber blanket:



1. High heat oven insulation blanket is made of high quality alumina-silicate ceramic fiber by using double side needling methods which improve the tensile strength and the flatness of the ceramic fiber blanket.
2. High heat oven insulation blanket contains no organic binders which guarantee the stability and constructability of the ceramic fiber blanket at both high temperature and low temperature.
3.Temperature: Rated to 2400℉.Our products have high heat insulation efficiency and light weight, which are the ideal choice for your heat insulation needs.
4.Ultra-high density: 128 Kg/ M3, fine and soft texture, make our insulation blanket your best choice!

Application

Furnace Kiln Lining Insulation Materials Aluminum Silicate Blanket 10mm 25mm Thickness High Pure Ceramic Fiber Wool Blanket 2



Industry Applications
Ceramic industry Kiln car insulation and seals,
Continuous and batch kilns
Steel industry Heat treating and annealing furnaces, Furnace door linings and seals,
Soaking pit covers and seals,
Furnace hot face repairs,
Reheating furnace and ladle covers,
Refining and petrochemical industry Reformer and pyrolysis lining,
Tube seals,gaskets and expansion joints, High temperature pipe,duct and turbine insulation
Crude oil heater linings
Power generation industry Boiler insulation,Boiler doors,Reusable turbine covers,
Expansion seals/pipe coverings
Other Insulation of commercial dryers and ovens
Veneer over existing refractory
Stress relieving insulation
Glass furnace crown protection
Fire protection



Send us inquiry to get more information !!!

Specification

Ceramic Fiber Insulation Blanket Specification



Type 1260 Blanket 1400 Blanket 1500 Blanket 1600 Blanket
Classification temperature ( °C) 1260 1425 1500 1600
Melting point (°C) 1760 1700 1760 -
Colour White White Blue gree White
Fiber diameter ( u m) 2.6 2.8 2.65 3.1
Fiber length (mm) ~250 ~250 ~150 ~100
Linear shrinkage(%) (1100oC x 24 hrs)1.8 (1300 o C x 24 hrs) 1.5 - -
Shot content (>212 micro meter) (%) 18 18 - -



Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201
1260 blanket 64 kg/m3 96 kg/m3 128 kg/m3 160kg/m3
mean 400°C 0.13 0.12 0.07 0.09
mean 600 °C 0.21 0.17 0.12 0.14
mean 800°C 0.30 0.25 0.16 0.20
1400 blanket - - 128 kg/m3 160kg/m3
mean 600 °C - - 0.13 0.14
mean 800 °C - - 0.20 0.20
mean1000 °C - - 0.29 0.28



Chemical composition (%)
  1260 Blanket 1400 Blanket 1500 Blanket 1600 Blanket
Al2O3 47.1 35.0 40.0 72
SiO2 52.3 49.7 58.1 28
ZrO2 - 15.0 - -
Cr2O3 - - 1.8 -
Bulk density(Kg/m3) 64,96,128,160
Available size(mm/roll) 7200*600*6,12.5,20,25,38;3600*600*50



Standard ceramic fiber blanket - working temperature 1050 ℃
High-alumina ceramic fiber blanket - working temperature 1260 ℃
Zirconia ceramic fiber blanket - working temperature 1350 ℃
Bulk density:64 kg/m3,96 kg/m3,128 kg/m3,160kg/m3
